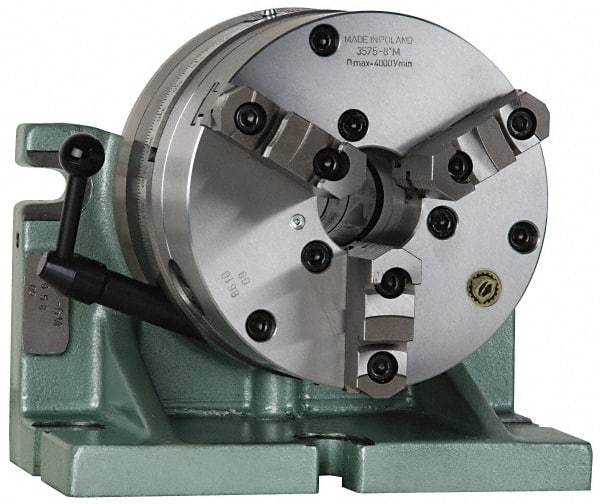

Bison - 360 Position, 8" Chuck, Super Indexing Spacer - 6.3" High Centerline, 1.024" Spacer Through Hole, 2.165" Chuck Through Hole, 15.04" OAL, 9.72" Overall Height
Item #: 09150970
Brand: Bison
Model #: 7-609-008
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Spacer Type | Super Spacer |
| Includes Chuck | Yes |
| Chuck Diameter (Inch) | 8 |
| Number of Indexing Increments | 360 |
| Centerline Height (Decimal Inch) | 6.3000 |
| Chuck Through Hole Size (Decimal Inch) | 2.1650 |
| Spacer Through Hole Size (Decimal Inch) | 1.0240 |
| Face Plate Diameter (Decimal Inch) | 7.8700 |
| Squareness - Base to Chuck (Decimal Inch) | 0.0008 |
| Concentricity of Chuck (Decimal Inch) | 0.0015 |
| Parallelism Over Face (Decimal Inch) | 0.0008 |
| Overall Length (Decimal Inch) | 15.0400 |
| Overall Height (Decimal Inch) | 9.7200 |
