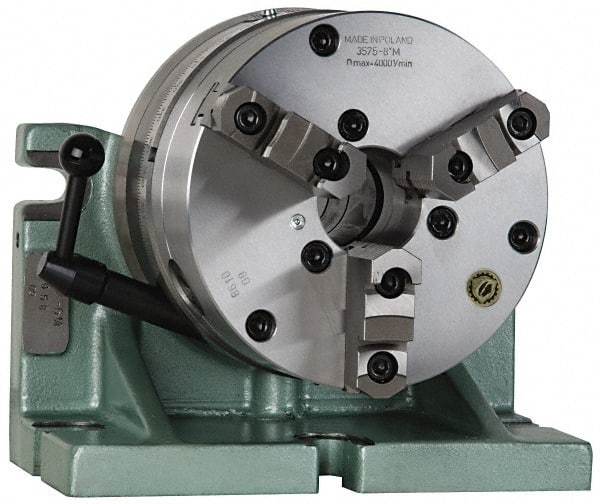

Bison - 360 Position, 6" Chuck, Super Indexing Spacer - 4.92" High Centerline, 0.866" Spacer Through Hole, 1.653" Chuck Through Hole, 11.85" OAL, 8.66" Overall Height
Item #: 09150962
Brand: Bison
Model #: 7-609-006
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Spacer Type | Super Spacer |
| Includes Chuck | Yes |
| Chuck Diameter (Inch) | 6 |
| Number of Indexing Increments | 360 |
| Centerline Height (Decimal Inch) | 4.9200 |
| Chuck Through Hole Size (Decimal Inch) | 1.6530 |
| Spacer Through Hole Size (Decimal Inch) | 0.8660 |
| Face Plate Diameter (Decimal Inch) | 6.3000 |
| Squareness - Base to Chuck (Decimal Inch) | 0.0008 |
| Concentricity of Chuck (Decimal Inch) | 0.0015 |
| Parallelism Over Face (Decimal Inch) | 0.0008 |
| Overall Length (Decimal Inch) | 11.8500 |
| Overall Height (Decimal Inch) | 8.6600 |
