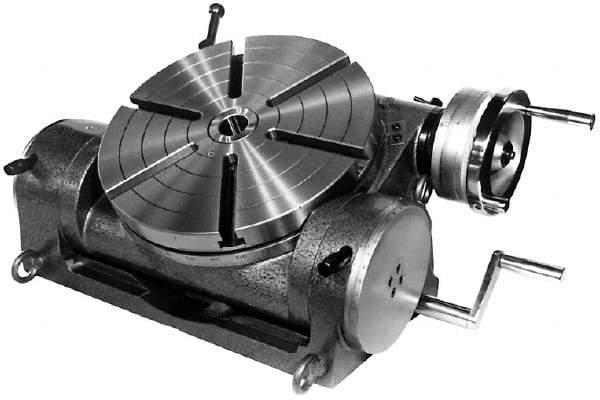

Yuasa - 10" Table Diam, Tilting Tilting Rotary Machining Table - 3MT Center Taper, 11.94mm T-Slot Width, 90:1 Gear Ratio
Item #: 09150715
Brand: Yuasa
Model #: 550-210
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Setting Position | Tilting |
| Tilting | Yes |
| Cross-Slide | No |
| Table Diameter (Inch) | 10 |
| Table Diameter (Decimal Inch) | 9.8438 |
| T-Slot Width (mm) | 11.94 |
| T-Slot Width (Decimal Inch) | 0.4700 |
| Center Taper | 3MT |
| Maximum Tilt Angle | 90.00 |
| Vernier Reading (sec.) | 10.00 |
| Gear Ratio | 90:1 |
| Indexing Accuracy (sec.) | 45.00 |
| Squareness - Clamp to Center Slot (mm) | 0.02 |
| Squareness - Clamp to Center Slot (Decimal Inch) | 0.0008 |
| Center Hole Concentricity (mm) | 0.01 |
| Center Hole Concentricity (Decimal Inch) | 0.0004 |
| Parallelism - Clamp Surface to Base (mm) | 0.02 |
| Parallelism - Clamp Surface to Base (Decimal Inch) | 0.0008 |
| Base Width (mm) | 255.02 |
| Base Width (Decimal Inch) | 10.0400 |
| Base Length (mm) | 397.00 |
| Base Length (Decimal Inch) | 15.6300 |
| Overall Height (mm) | 154.94 |
| Overall Height (Decimal Inch) | 6.1000 |
