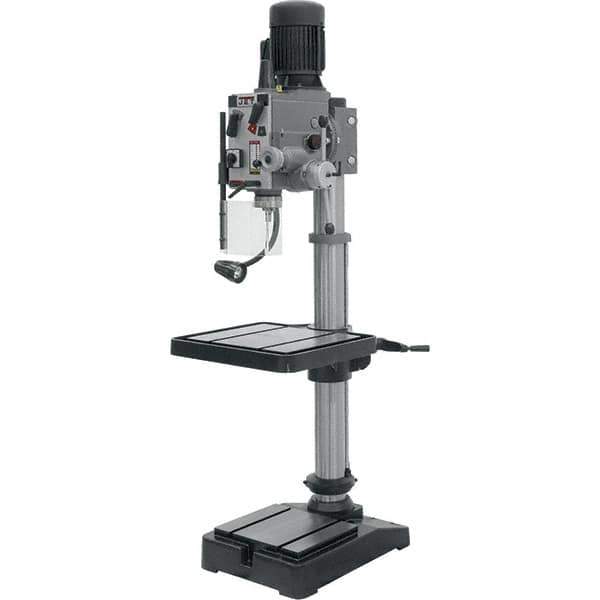

Jet - 20" Swing, Geared Head Drill Press - 12 Speed, 2 hp, Three Phase
Item #: 09098468
Brand: Jet
Model #: 354024
Exact Tooling IR#: 04
Features and Benefits
Floor drill presses, also known as standing drill presses, offer more power options than bench drill presses. They are most suited for heavy-duty operations.
Drill presses are used for several countersinking, counterboring, drilling, reaming and tapping operations.They are used for heavy-duty metalworking operations.
Geared head drive systems are similar to step pulleys, but are driven by a geared transmission. They offer rapid speed changes by turning a hand dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Stand Type | Floor |
| Machine Type | Drill Press |
| Swing Distance (Inch) | 20 |
| Spindle Speed Control | Geared Head |
| Phase | 3 |
| Spindle Taper Size | 3MT |
| Spindle Travel Length (Inch) | 4-1/2 |
| Horsepower (HP) | 2 |
| Voltage | 220; 230 |
| Minimum Spindle Speed (RPM) | 60 |
| Maximum Spindle Speed (RPM) | 3000 |
| Drilling Capacity in Steel (Inch) | 1-1/4 |
| Drilling Capacity in Cast Iron (Inch) | 1-1/2 |
| Radial Head | NonRadial Head |
| Number of Spindle Speeds | 12 |
| Spindle to Table Distance (Inch) | 30-1/2 |
| Spindle to Column Distance (Inch) | 10 |
| Table Length (Inch) | 21-3/4 |
| Table Width/Diameter (Inch) | 19-1/2 |
| Table Load Capacity (Lb.) | 275.00 |
| Table Slot Size (Inch) | 5/8 |
| Base Length (Inch) | 26 |
| Base Width (Inch) | 18 |
| Base Depth (Inch) | 5 |
| Column Diameter (Inch) | 4-1/2 |
| Overall Length (Inch) | 33 |
| Overall Height (Inch) | 29 |
| Overall Depth (Inch) | 76 |
| Includes | Draw Bar; Drill Chuck Arbor |
