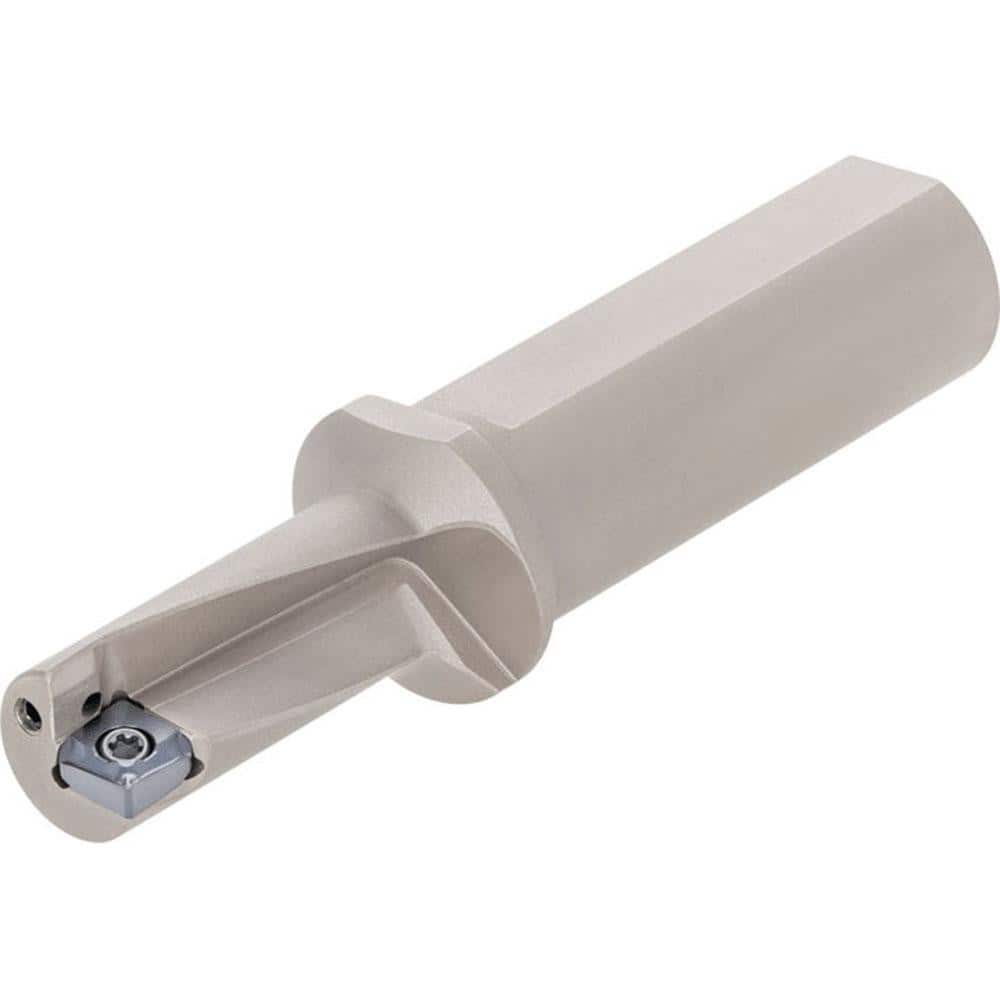

Indexable Insert Drills; Drill Style: TBM; Maximum Drill Diameter (mm): 14.00; Maximum Drill Depth (mm): 31.50; Shank Type: Flatted; Shank Diameter (Inch): 16; Shank Diameter (mm): 16.00; Number of Drill Inserts: 1; Cutting Direction: Left Hand; Maximum D
Item #: 08990061
Brand: Tungaloy
Model #: 6776618
Product Specifications
| Drill Style | TBM |
| Maximum Drill Diameter (mm) | 14.00 |
| Maximum Drill Depth (mm) | 31.50 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 16 |
| Shank Diameter (mm) | 16.00 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Left Hand |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | XOMU |
| Compatible Insert Size Code | 07 |
| Drill Depth by Diameter Ratio | 2.25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 84.97 |
| Series | TBM |
| Body Length | 38.57 |
| Shank Length (mm) | 46.40 |
| Coolant Hole Thread Size | G 1/8 |
| Tool Application | Drilling |
| Coolant Through | Yes |
