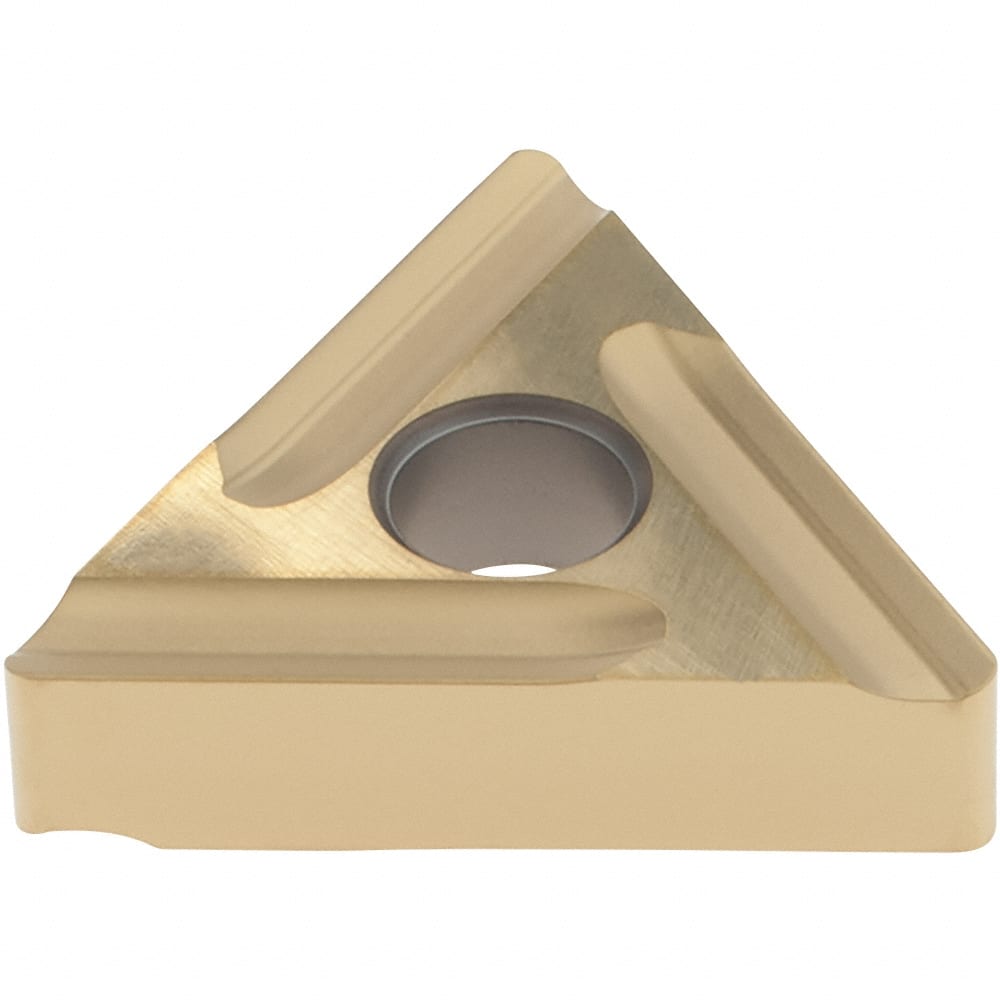

Turning Insert
Item #: 08969032
Brand: Tungaloy
Model #: 6808615
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 432TRS |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | GH330 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Series | TNMA |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.8660 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | TNMG432TRS |
| Standards | ISO |
| Chip Breaker | TRS |
