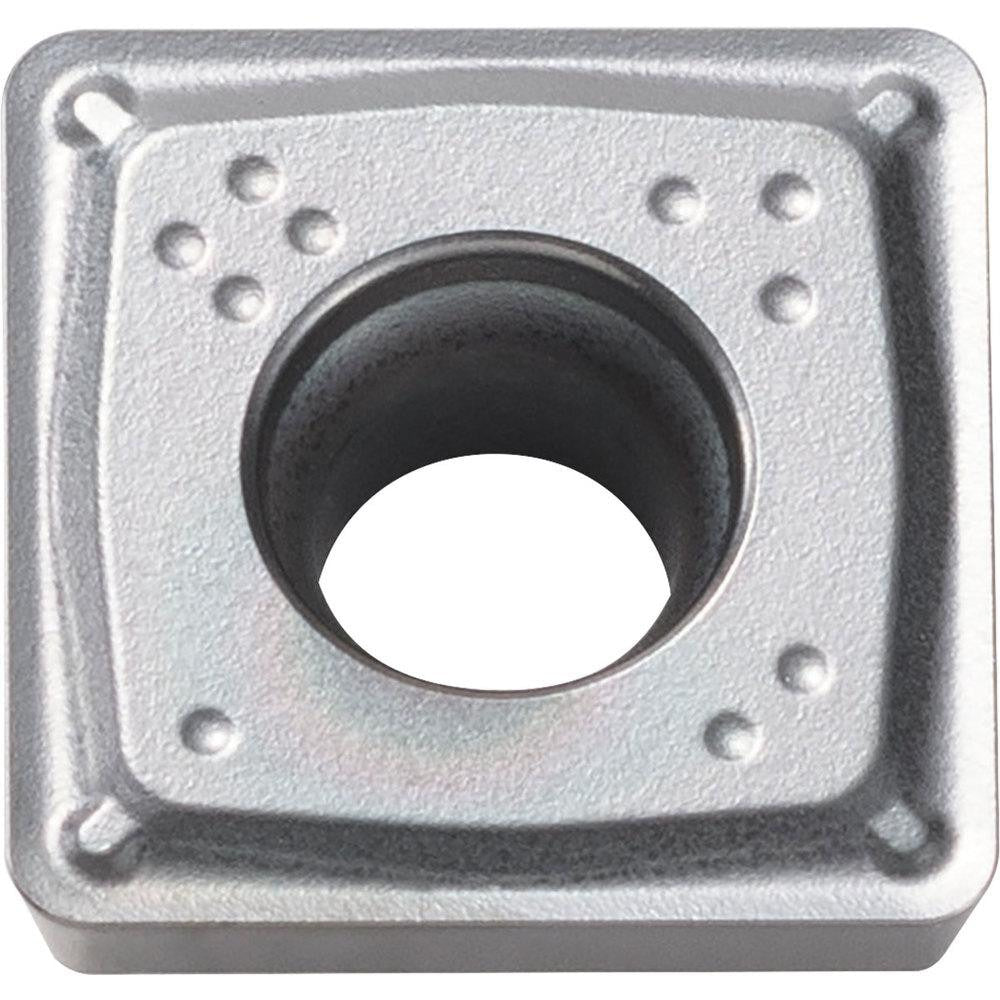

Milling Insert: SPMT060204EN-GM PR1825, Carbide
Item #: 01099209
Brand: Kyocera
Model #: TLT00206
Product Specifications
| Insert Style | SPMT |
| Insert Size | 060204 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | PR1825 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 4 |
| Thickness (mm) | 2.3800 |
| Coating/Finish | MEGACOAT NANO EX |
| Insert Size Code | 060204 |
| Inscribed Circle (mm) | 6.35 |
| Insert Hand | Neutral |
| Series | MEF |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.5000 |
| Rake | Positive |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | SPMT060204ENGMPR1825 |
| Iso Code | SPMT060204EN-GM |
| Standards | PR1825 |
| Manufacturers Catalog Number | SPMT060204ENGMPR1825 |
| Chip Breaker | EN-GM |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Multi-Use Tool | Yes |
