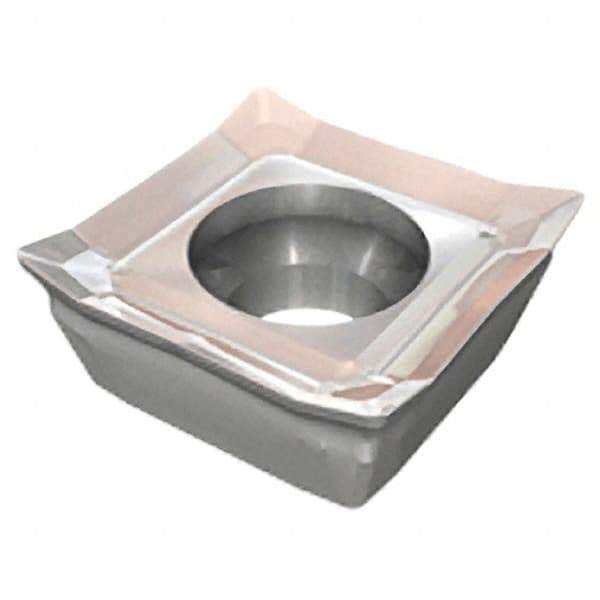

Iscar - QPMR100404 M Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.1764" Thick, 0.4075" Inscribed Circle, 0.4mm Corner Radius
Item #: 08490187
Brand: Iscar
Model #: 5604548
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QPMR |
| Insert Size | 100404 |
| Material | Carbide |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.4075 |
| Thickness (Decimal Inch) | 0.1764 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 11.000 |
| Rake Angle | 27 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | M |
| ISO Number | QPMR 100404PDN-HQ-M |
