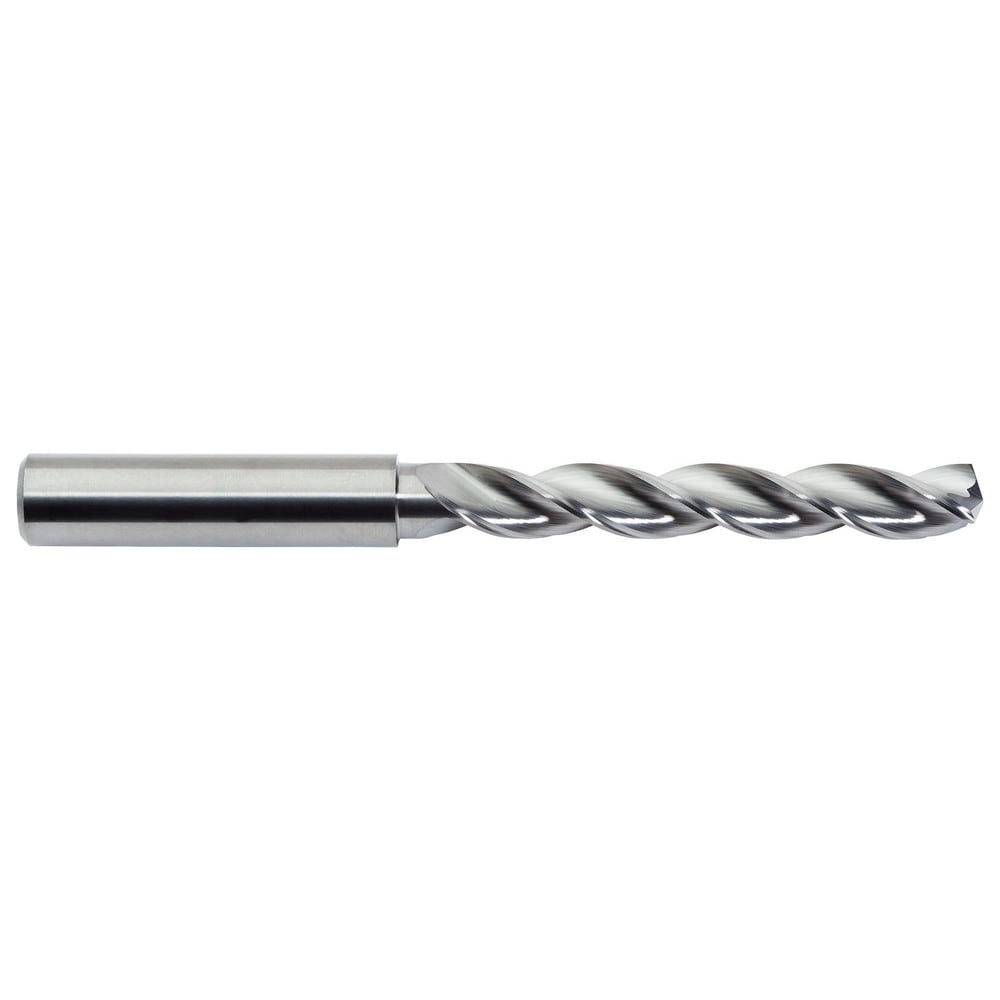

Jobber Drill: #37, 150 deg Point, Solid Carbide
Item #: 89942080
Brand: M.A. Ford
Model #: 22910400
Product Specifications
| Drill Bit Size (Wire) | #37 |
| Drill Bit Size (Decimal Inch) | 0.1040 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 150 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Coolant Through | No |
| Number of Flutes | 3 |
| Flute Length (Inch) | 1-1/4 |
| Primary Workpiece Material Code | N |
| Shank Diameter (Decimal Inch) | 0.0625 |
| Overall Length (mm) | 57.15 |
| Overall Length (Inch) | 2-1/4 |
| Overall Length (Decimal Inch) | 2.2500 |
| Flute Length (mm) | 31.75 |
| Flute Length (Decimal Inch) | 1.2500 |
| Series | 229 |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 2.8750 |
| Shank Length (Decimal Inch) | 1.0000 |
| Shank Length (Inch) | 1 |
| Drill Point Length (Decimal Inch) | 0.0130 |
| Drill Bit Diameter Tolerance | +0.0001 to +0.0004 in |
| Shank Type | Straight |
| Standards | DIN 6537 L |
| Drill Bit Grade | Specialized |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| UNSPSC Code | 23241634 |
| Country of Origin | UNITED STATES |
