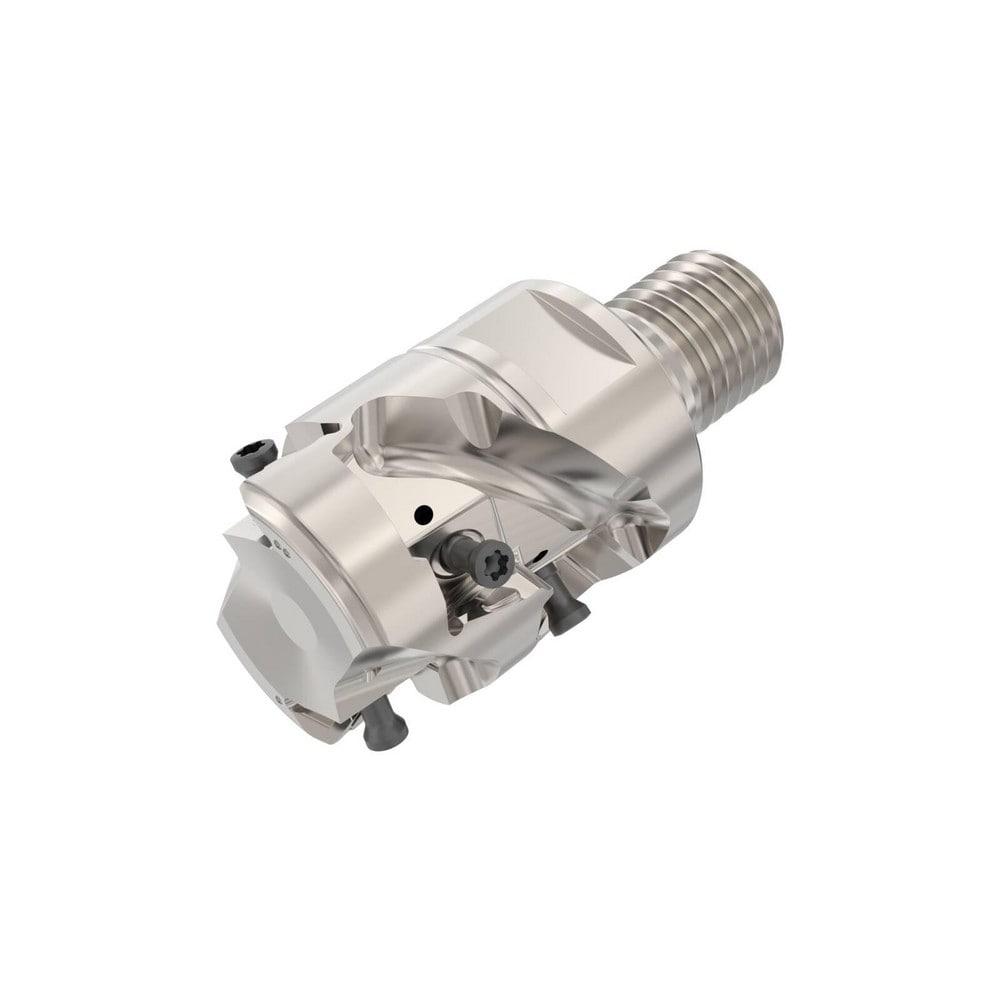

Indexable Square-Shoulder End Mill: R217942040RE035LO122A, M20 Modular Connection, Combimaster Shank
Item #: 86757408
Brand: Seco
Model #: 10215197
Product Specifications
| Cutting Diameter (mm) | 40.00 |
| Overall Length (mm) | 77.00 |
| Maximum Depth of Cut (mm) | 35.00 |
| Cutter Style | R217.94 |
| Shank Type | Combimaster |
| Shank Diameter (mm) | 20.0000 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 0 |
| Tool Material | Steel |
| Series | R217.94-12 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (mm) | 27.000 |
| Head Length (mm) | 50.00 |
| Modular Connection Size | M20 |
| Maximum RPM | 11000.000 |
| Tool Application | Helical; Slotting; Shouldering |
| Tool Performance | General Purpose |
| Standards | ISO; ANSI |
| Rake | Negative |
| Complete Insert Compatibility | LOEX1207 |
| Insert Compatibility | LOEX1207 |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| ISO Number | R217.94-2040.RE-035-LO12.2A |
| Manufacturers Catalog Number | 10215197 |
| Usable Length (mm) | 50.000 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Yes |
| Country of Origin | France |
