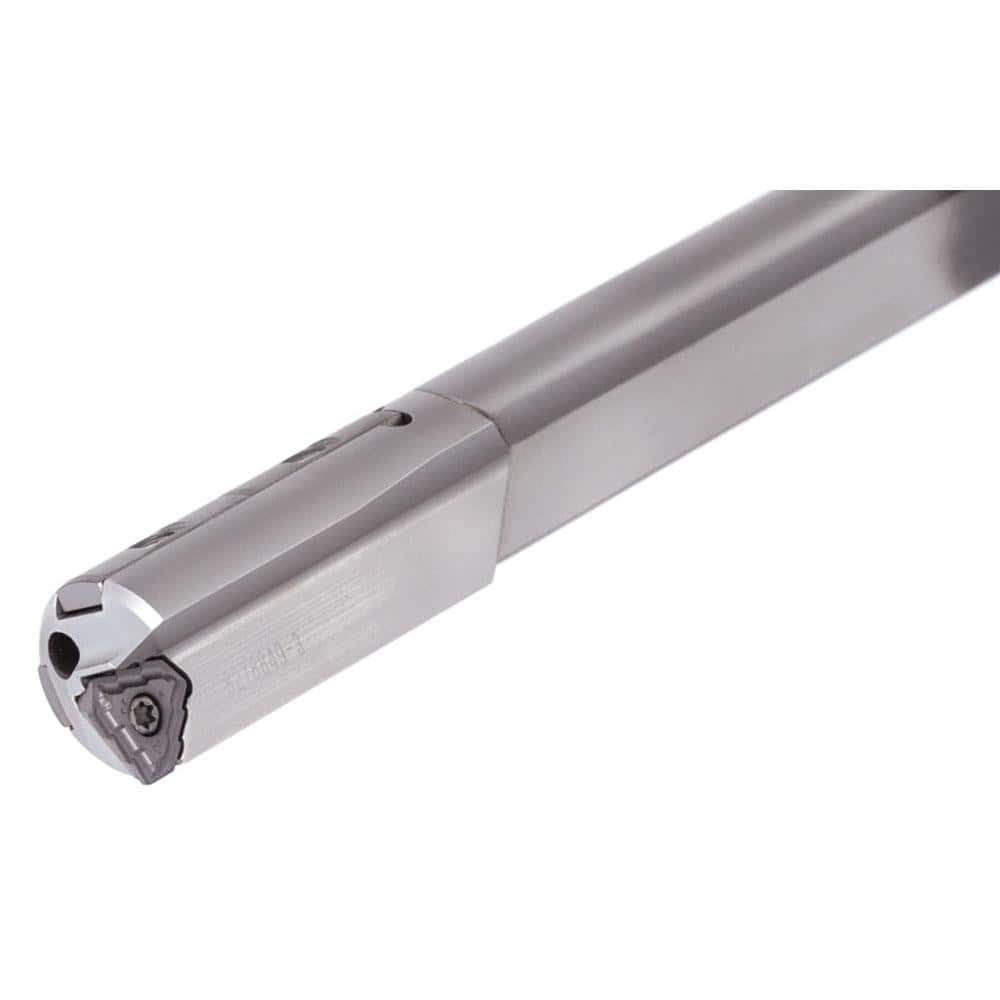

Indexable Insert Drills; Drill Style: TRLGCH; Maximum Drill Diameter (Inch): 23/32; Maximum Drill Diameter (Decimal Inch): 0.7180; Maximum Drill Depth (Decimal Inch): 68.3460; Shank Type: Whistle Notch; Shank Diameter (Inch): 1-1/4; Shank Diameter (Decima
Item #: 08024036
Brand: Tungaloy
Model #: 4851627
Product Specifications
| Drill Style | TRLGCH |
| Maximum Drill Diameter (Inch) | 23/32 |
| Maximum Drill Diameter (Decimal Inch) | 0.7180 |
| Maximum Drill Depth (Decimal Inch) | 68.3460 |
| Shank Type | Whistle Notch |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 1 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Tool Material | Steel |
| Compatible Insert Style | TOHT |
| Compatible Insert Size Code | 09 |
| Drill Depth by Diameter Ratio | 95xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 72.17 |
| Series | TRLGCH |
| Shank Length (Decimal Inch) | 2.7560 |
| Minimum Achievable Hole Tolerance | 0.0020 in |
| Maximum Achievable Hole Tolerance | 0.0047 in |
| Tool Application | Drilling |
| Coolant Through | Yes |
