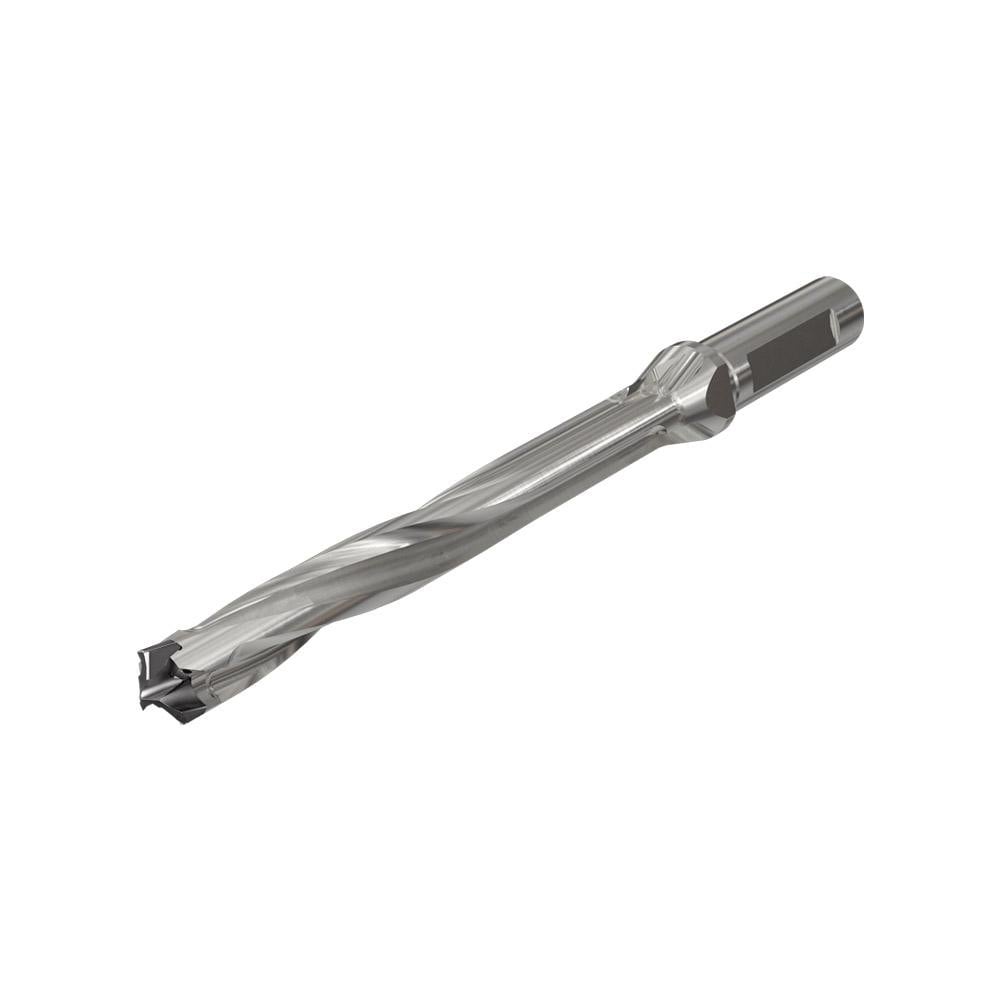

Replaceable-Tip Drills; Minimum Drill Diameter (Decimal Inch): 0.4720; Minimum Drill Diameter (mm): 11.99; Maximum Drill Diameter (mm): 12.40; Maximum Drill Diameter (Decimal Inch): 0.4880; Drill Depth by Diameter Ratio: 8xD; Maximum Drill Depth (mm): 121
Item #: 84447473
Brand: Iscar
Model #: 3392273
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.4720 |
| Minimum Drill Diameter (mm) | 11.99 |
| Maximum Drill Diameter (mm) | 12.40 |
| Maximum Drill Diameter (Decimal Inch) | 0.4880 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 121.01 |
| Maximum Drill Depth (Decimal Inch) | 4.7640 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Seat Size | 12 |
| Shank Diameter (mm) | 15.8800 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 4.5000 - 6.0000 |
| Compatible Insert Style | H3P 120-IQ |
| Overall Length (mm) | 168.9100 |
| Overall Length (Decimal Inch) | 6.6500 |
| Series | D3N |
| Flute Length (mm) | 98.78 |
| Flute Length (Decimal Inch) | 3.8890 |
| Body Length (Decimal Inch) | 4.7640 |
| Body Length | 121.010 |
| Shank Length (Decimal Inch) | 1.8860 |
| Shank Length (mm) | 47.900 |
| Tool Application | Drilling |
| Standards | ISO 13399 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Coating Classification | Uncoated |
| Number Of Flutes | 3 |
| UNSPSC Code | 23291502 |
| Coating/Finish | Bright (Polished) |
| Country of Origin | Israel |
