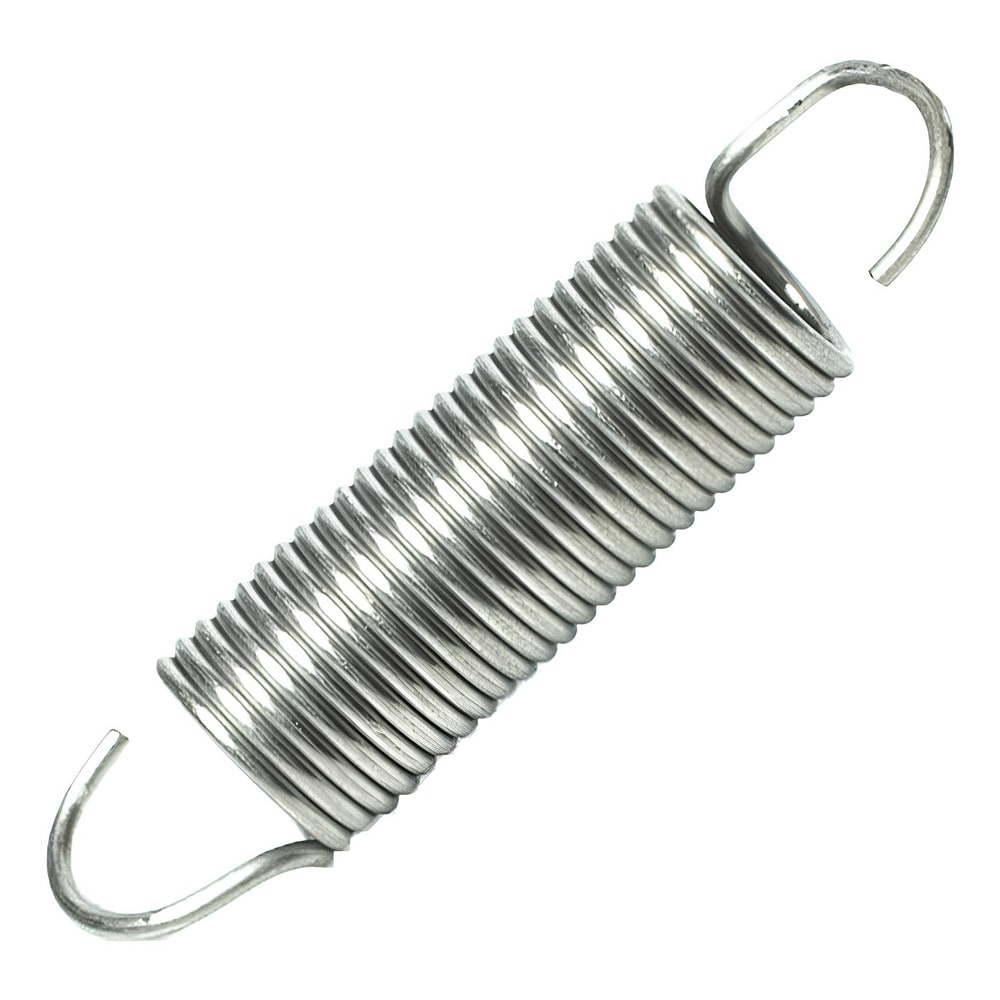

Extension Springs; End Type: Hook; Outside Diameter (mm): 10.0000; Spring Rate: 1.1000; Material: Stainless Steel; Overall Length (Decimal Inch): 2.0400
Item #: 03371911
Brand: Associated Spring Raymond
Model #: MHM1000900050S
Product Specifications
| End Type | Hook |
| Outside Diameter (mm) | 10.0000 |
| Spring Rate | 1.1000 |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 2.0400 |
| Initial Tension (N) | 2.5 |
| Maximum Extended Length (mm) | 142.20 |
| Free Length (mm) | 50.000 |
| Inside Hook Length (Fractional Inch) | 1-11/32 |
| Standards | JIS G4314 SUS 302/304; EN 10270-3; ASTM A313 |
| Finish/Coating | Uncoated |
| Wire Size (mm) | 0.90 |
| UNSPSC Code | 31161907 |
