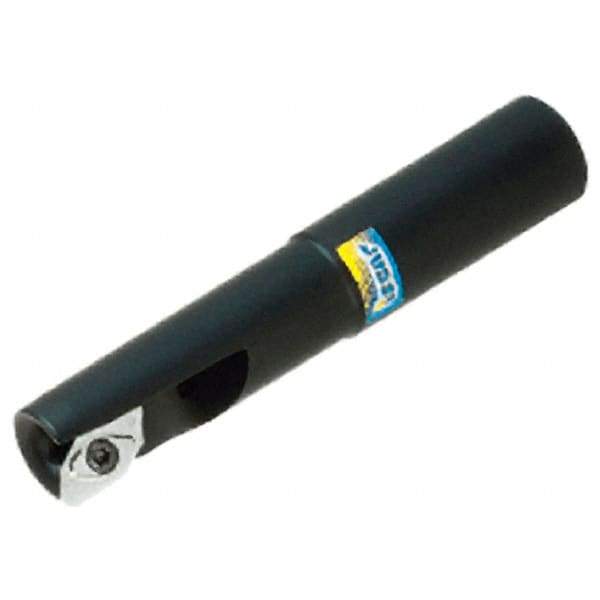

Iscar - 32mm Cut Diam, 15.8mm Max Depth of Cut, 32mm Shank Diam, 150mm OAL, Indexable Square Shoulder End Mill - Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Helialu
Item #: 07639628
Brand: Iscar
Model #: 3102300
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 150.00 |
| Overall Length/Projection (Decimal Inch) | 5.9055 |
| Lead Angle | 90 |
| Series | Helialu |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.6220 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (mm) | 90.00 |
| Head Length (Decimal Inch) | 3.5433 |
| Weldon Flat | No |
| Maximum RPM | 45643 |
