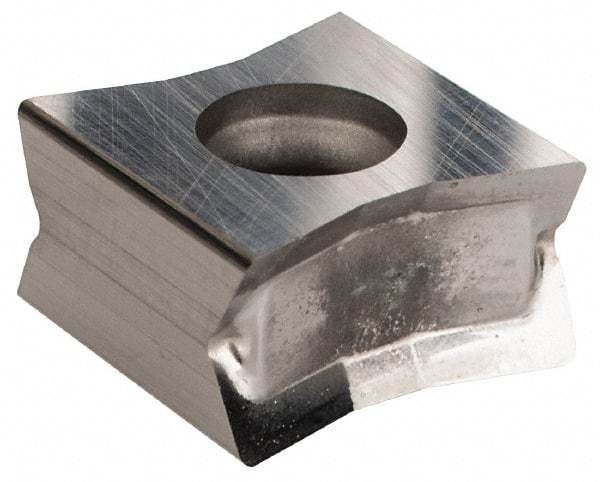

Iscar - LNAR1106 P Grade IC07 Carbide Milling Insert - Uncoated, 0.2362" Thick, 0.5mm Corner Radius
Item #: 07629595
Brand: Iscar
Model #: 5603507
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNAR |
| Insert Size | 1106 |
| Material | Carbide |
| Manufacturer's Grade | IC07 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.4220 |
| Length (Decimal Inch) | 0.4394 |
| Thickness (Decimal Inch) | 0.2362 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Relief Angle | 0.000 |
| Rake | Positive |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | P |
| ISO Number | LNAR 1106 PN-N-P |
