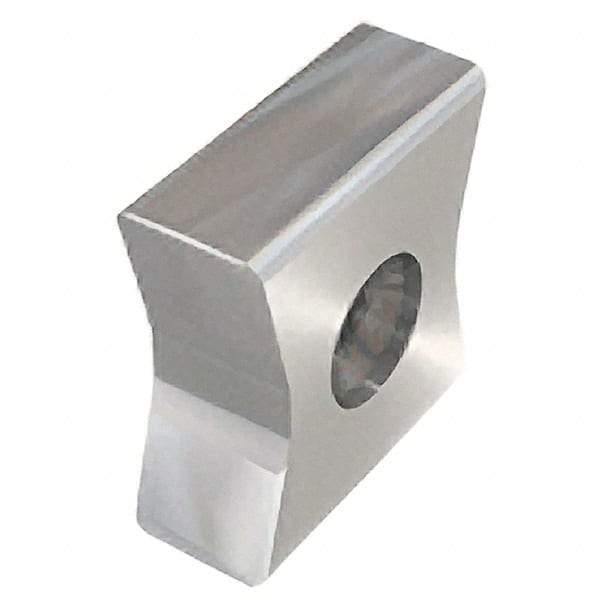

Iscar - LNHW1506 TN Grade IS8 Ceramic Milling Insert - Uncoated, 0.5697" Thick, 0.8mm Corner Radius
Item #: 07629587
Brand: Iscar
Model #: 5603503
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | LNHW |
| Insert Size | 1506 |
| Material | Ceramic |
| Manufacturer's Grade | IS8 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.2362 |
| Length (Decimal Inch) | 0.5906 |
| Thickness (Decimal Inch) | 0.5697 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Rake Angle | 13 |
| Rake | Positive |
| Included Angle | 90 |
| Shape | Rectangle |
| Chipbreaker | TN |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| ISO Number | LNHW 1506 PNTN |
