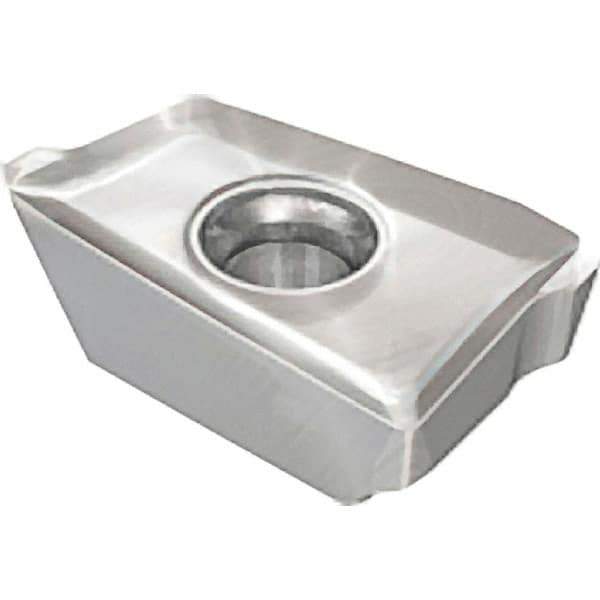

Iscar - 3M AXKT2006 TR Grade IC328 Carbide Milling Insert - TiCN Finish, 0.2559" Thick
Item #: 07628704
Brand: Iscar
Model #: 5603079
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 3M AXKT |
| Insert Size | 2006 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.5472 |
| Length (Decimal Inch) | 0.8898 |
| Thickness (Decimal Inch) | 0.2559 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | TR |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| ISO Number | 3M AXKT 2006-ADTR |
