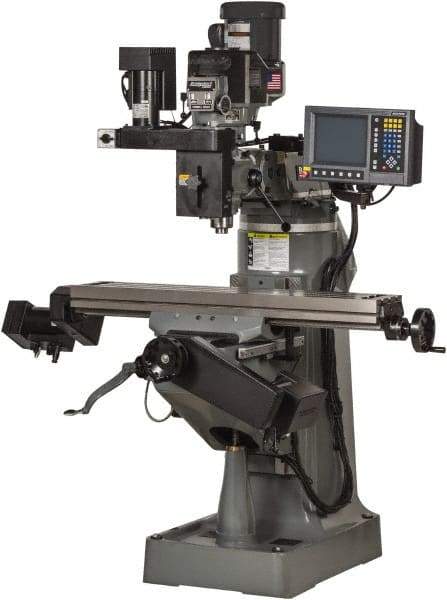

Bridgeport - 48" Long x 9" Wide, 3 Phase Acu-Rite Millpower CNC Milling Machine - Variable Speed Pulley Control, R8 Taper, 3 hp - Industrial Tool & Supply

Bridgeport - 48" Long x 9" Wide, 3 Phase Acu-Rite Millpower CNC Milling Machine - Variable Speed Pulley Control, R8 Taper, 3 hp


Item #: 07116171
Brand: Bridgeport
Model #: 948BPT3AXMILPWR
Exact Tooling IR#: 04

Features and Benefits

Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications
Spindle Speed Control Variable Speed Pulley
CNC Controller Brand Acu-Rite
CNC Controller Model Millpower
Table Length (Inch) 48
Table Width (Inch) 9
Phase 3
Longitudinal Travel (Decimal Inch) 36.0000
Cross Travel (Decimal Inch) 12.0000
Knee Travel (Inch) 16
Positioning Accuracy (Decimal Inch) 0.0008
Positioning Repeatability (Decimal Inch) 0.0005
Maximum Spindle Speed (RPM) 4200.00
Minimum Spindle Speed (RPM) 60.00
Spindle Travel Length (Inch) 5
Spindle Travel Length (Decimal Inch) 5.0000
Spindle Taper Size R8
Quill Diameter (Inch) 3-3/8
Spindle Power Feed Rate Per Minute (mm) 100 (Z-Axis) (Max.)
Maximum Spindle to Table Distance (Inch) 18-1/4
Table Load Capacity (Lb.) 750.00
Number of T-Slots 3
Left-Hand Head Tilt (Degrees) 90.00
Right-Hand Head Tilt (Degrees) 90.00
Forward Head Tilt (Degrees) 45.00
Backward Head Tilt (Degrees) 40.00
Ram Travel Length (Inch) 12
Ram Travel Length (Decimal Inch) 12.0000
Horsepower (HP) 3.00
Voltage 220/440
Overall Height (Inch) 81-5/8
Includes Acu-Rite MILLPWR G2 Controller (MSC 92499730)
$42,926.83
