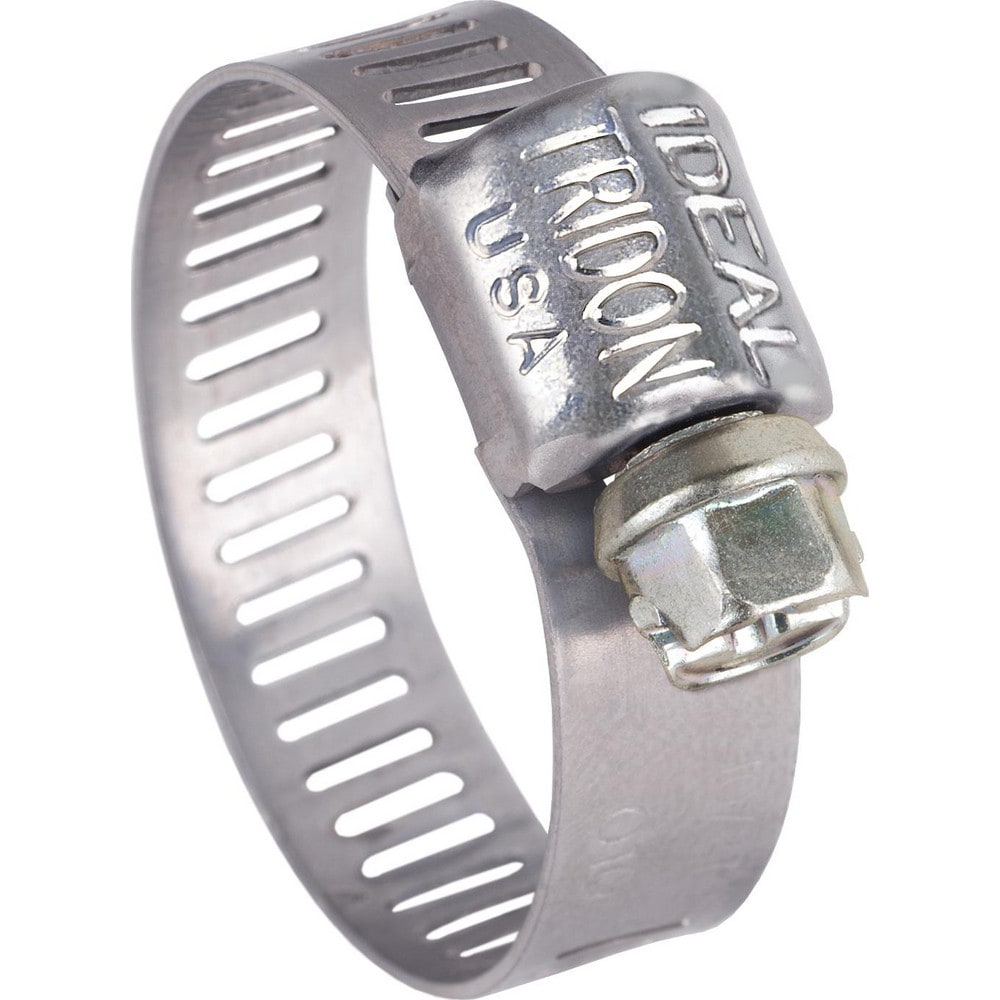

Worm Gear Clamps; Clamp Type: Miniature Worm Drive; Minimum Diameter (mm): 8.00; Minimum Diameter (Fractional Inch): 5/16; Minimum Diameter (Decimal Inch): 0.3125; Maximum Diameter (Decimal Inch): 0.6250; Maximum Diameter (mm): 16.00; Maximum Diameter (In
Item #: 62571500
Brand: IDEAL TRIDON
Model #: 5202052
Product Specifications
| Clamp Type | Miniature Worm Drive |
| Minimum Diameter (mm) | 8.00 |
| Minimum Diameter (Fractional Inch) | 5/16 |
| Minimum Diameter (Decimal Inch) | 0.3125 |
| Maximum Diameter (Decimal Inch) | 0.6250 |
| Maximum Diameter (mm) | 16.00 |
| Maximum Diameter (Inch - Fraction - 4 Decimals) | 5/8 |
| Band Material | Stainless Steel |
| Band Width (Inch) | 5/16 |
| SAE Size | 4 |
| Band Thickness | 0.56 |
| Band Thickness | 14/25 |
| Width (Fractional Inch) | 5/16 |
| Drive Type | Hex |
| Screw Material | Plated Carbon Steel |
| Hex Size (Inch) | 1/4 |
| Series | 52M |
| Material Grade | 301; Carbon Steel |
| Screw Type | Hex Head |
| Material | Carbon Steel; 301 Stainless Steel |
| Width (mm - 2 Decimals) | 7.94 |
| Hose Size | 1/2 |
| Product Service Code | 4730 |
| UNSPSC Code | 31171712 |
| Clamp Type | Miniature Worm Drive |
| Minimum Diameter (mm) | 8.00 |
| Minimum Diameter (Fractional Inch) | 5/16 |
| Minimum Diameter (Decimal Inch) | 0.3125 |
| Maximum Diameter (Decimal Inch) | 0.6250 |
| Maximum Diameter (mm) | 16.00 |
| Maximum Diameter (Inch - Fraction - 4 Decimals) | 5/8 |
| Band Material | Stainless Steel |
| Band Width (Inch) | 5/16 |
| SAE Size | 4 |
| Band Thickness | 0.56 |
| Band Thickness | 14/25 |
| Width (Fractional Inch) | 5/16 |
| Drive Type | Hex |
| Screw Material | Plated Carbon Steel |
| Hex Size (Inch) | 1/4 |
| Series | 52M |
| Material Grade | 301; Carbon Steel |
| Screw Type | Hex Head |
| Material | Carbon Steel; 301 Stainless Steel |
| Width (mm - 2 Decimals) | 7.94 |
| Hose Size | 1/2 |
| Product Service Code | 4730 |
| UNSPSC Code | 31171712 |
| MSC Part # | 62571500 |
| Mfr Part # | 5202052 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
