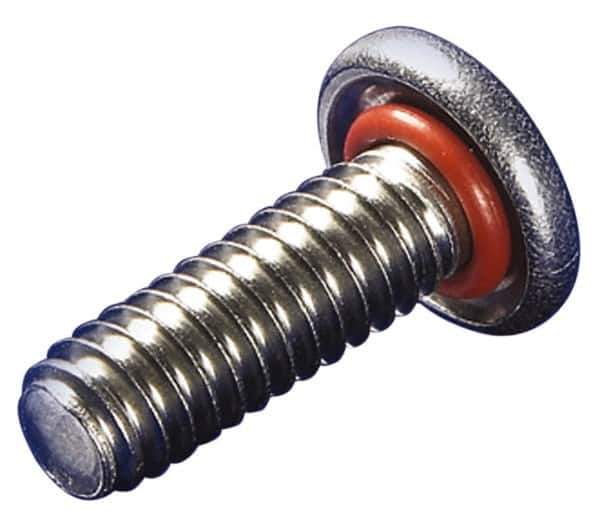

APM HEXSEAL - #4-40, 5/16" Length Under Head, Pan Head, #1 Phillips Self Sealing Machine Screw - Uncoated, 18-8 Stainless Steel, Silicone O-Ring
Item #: 06766299
Brand: APM HEXSEAL
Model #: R4-40X5/16
Exact Tooling IR#: 04
Features and Benefits
Pan head types have cylindrical heads with rounded edges and flat bearing surfaces. Their low head height and large diameter provide increased driving power.
Phillips drive types have a cross-shaped slot and are used with Phillips drivers. To prevent damage to the fastener head and fastened surface, the drive design forces the driver to cam out when the fastener is sufficiently tightened.
Silicone is a nonadhesive, self-fusing material that is easy to work with. It is primarily used in high-temperature and temporary applications for insulating and moisture sealing.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size | #4-40 |
| Head Type | Pan |
| Drive Type | Phillips |
| Length (Inch) | 5/16 |
| O Ring Material | Silicone |
| Material | Stainless Steel |
| Length MeasurementType | Length Under Head |
| Material Grade | 18-8 |
| Finish/Coating | Uncoated |
| Thread Standard | UNC |
| Phillips Drive Size | #1 |
