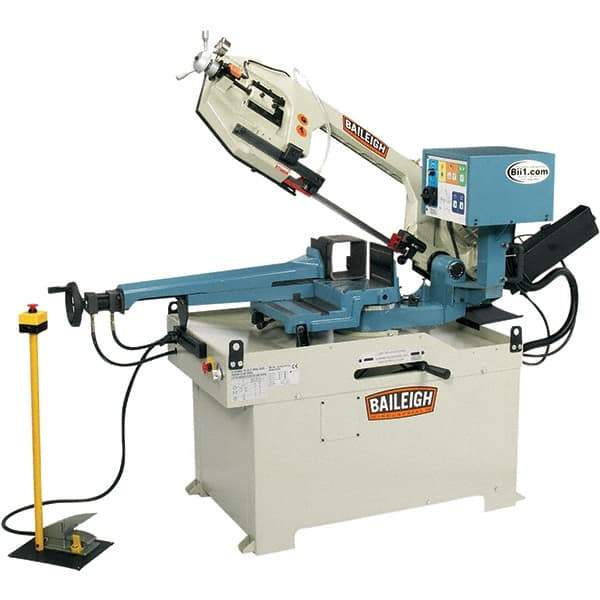

Baileigh - 13.77 x 8.66" Semi-Automatic Combo Horizontal & Vertical Bandsaw - 1 Phase, 60° Right, 45° Left Vise Angle of Rotation, 2 hp, 220 Volts, Frequency Drive
Item #: 06737555
Brand: Baileigh
Model #: 1001570
Exact Tooling IR#: 04
Features and Benefits
Semi-Automatic bandsaws are designed for the bow of the saw to raise after the preprogrammed cut is complete. The operator will then manually reposition the saw for another cut.
Frequency drive systems, also known as Electronic Variable Speed control (EVS), are similar to variable speed pulleys, but the speed is controlled electronically. These systems feature several speeds within a specified speed range.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Style | Semi-Automatic |
| Drive Type | Frequency |
| Angle of Rotation | 60 Deg Right, 45 Deg Left |
| Maximum Capacity (Rectangular) at 90 (Inch) | 13.77 X 8.66 |
| Max. Capacity (Rectangular) at 90 (Decimal Inch) | 13.7700 |
| Maximum Capacity (Rounds) at 90 (Inch) | 11 |
| Maximum Capacity (Rounds) at 90 (Decimal Inch) | 10.6300 |
| Phase | 1 |
| Coolant System | Yes |
| Maximum Capacity (Rectangular) at 45 (mm) | 240 X 160 |
| Maximum Capacity (Rectangular) at 45 (Inch) | 9.45 X 6.3 |
| Maximum Capacity (Rounds) at 45 (Inch) | 9 |
| Maximum Capacity (Rounds) at 45 (Decimal Inch) | 9.4500 |
| Maximum Capacity (Rounds) at 45 (mm) | 240.00 |
| Max. Capacity (Rectangular) at 45 (Decimal Inch) | 9.4500 |
| Blade Speeds (SFPM) | 66-280 |
| Blade Length (mm) | 3162.3 |
| Blade Length (Inch) | 124.5 |
| Blade Length (Decimal Inch) | 124.5 |
| Blade Thickness (mm) | 0.89 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Floor to Table Height (Inch) | 35 |
| Horsepower (HP) | 2 |
| Overall Height (mm) | 1676 |
| Overall Height (Inch) | 66 |
| Overall Height (Decimal Inch) | 66 |
| Voltage | 220 |
