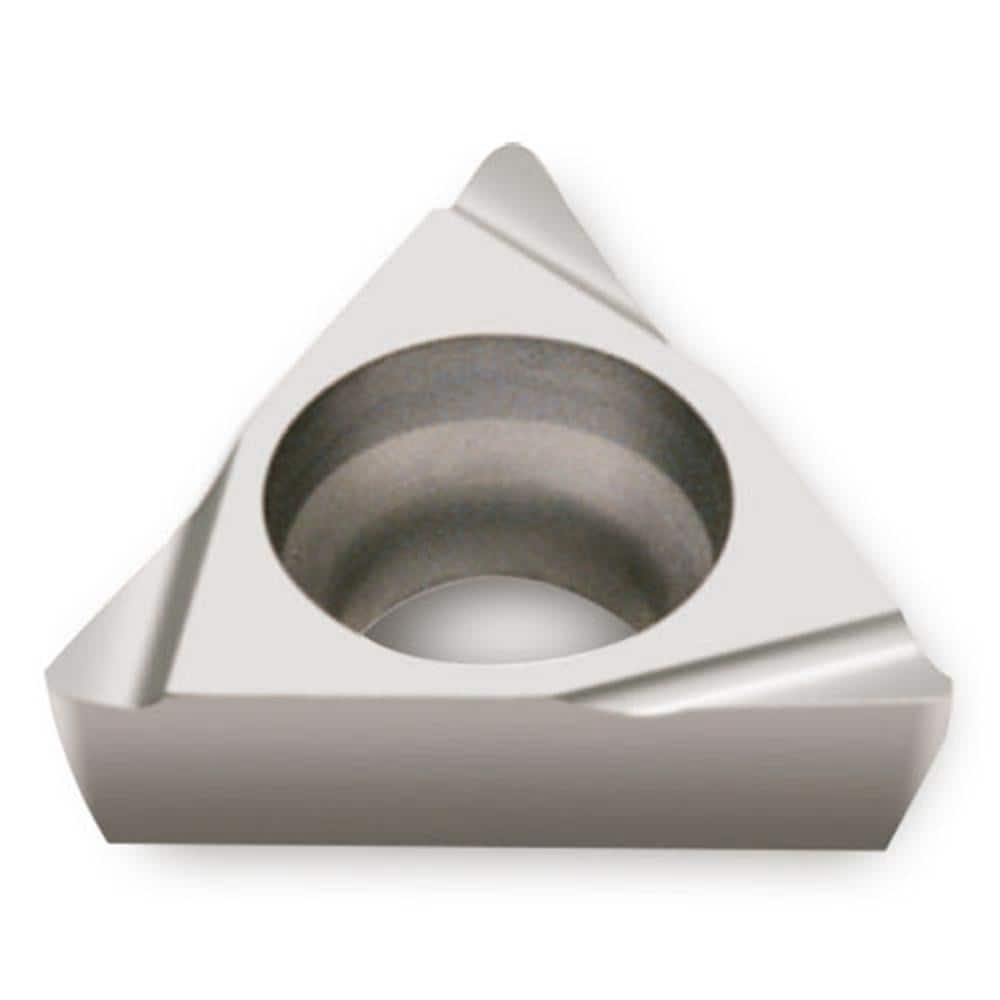

TPGX220.5L Cermet Turning Insert 0.008″ Corner Radius, 1/8″ Thick, 60° Triangle
Item #: 06695563
Brand: Ingersoll Cutting Tools
Model #: 5740123
Product Specifications
| Insert Style | TPGX |
| Insert Shape Code | T |
| Insert Size Code | 220.5 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | G |
| Insert Material | Cermet |
| Manufacturer Grade | CT3000 |
| Hole Diameter (Decimal Inch) | 0.1380 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TPGX |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4330 |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | TPGX220.5LCT3000 |
| Iso Code | TPGX110302L CT3000 |
| Standards | ISO |
| Chip Breaker | L |
| Coating/Finish | Uncoated |
