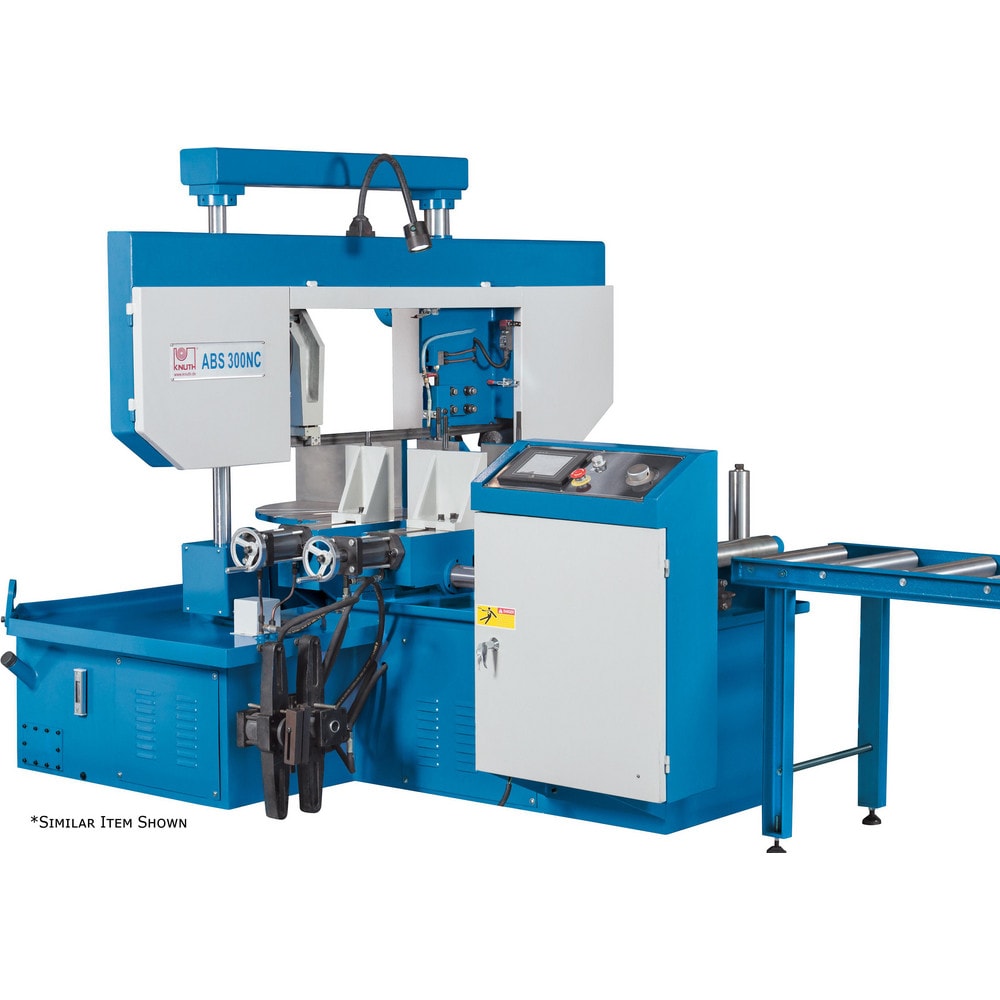

Horizontal Bandsaws; Machine Style: Automatic; Drive Type: Geared Head; Angle of Rotation: 45, 15, 90, 30; Rectangular Cutting Capacity - Horizontal At 90 Degrees: 20x16 inches; Maximum Capacity (Rectangular) (Inch): 20x16; Maximum Capacity (Rounds) (Inch
Item #: 87998936
Brand: Knuth
Model #: 152883
Product Specifications
| Machine Style | Automatic |
| Drive Type | Geared Head |
| Angle of Rotation | 45; 15; 90; 30 |
| Rectangular Cutting Capacity - Horizontal At 90 Degrees | 20x16 inches |
| Maximum Capacity (Rectangular) (Inch) | 20x16 |
| Maximum Capacity (Rounds) (Inch) | 16 |
| Round Cutting Capacity - Horizontal at 90 Degrees | 16 inches |
| Minimum Blade Speed | 66 |
| Maximum Blade Speed | 330 |
| Phase | Three |
| Horsepower | 5.4000 |
| Voltage | 230V |
| Amperage | 25.0000 |
| Maximum Miter Cut Angle | 45 |
| Maximum Cutting Diameter | 16 |
| Blade Length (mm) | 5793.2300 |
| Blade Length (Feet) | 18.33 |
| Blade Length (Inch) | 220.08 |
| Blade Length (Decimal Inch) | 228.0800 |
| Blade Width | 1.61 |
| Blade Width (Decimal Inch) | 1.6100 |
| Blade Thickness (Decimal Inch) | 0.0420 |
| Base Depth (Inch) | 91 |
| Base Depth (Decimal Inch) | 91.0000 |
| Blade Guide Type | Carbide |
| Blade Brush Included | Yes |
| Number Of Speeds | Infinitely Variable |
| Frequency | 60 |
| Bed Height | 29.50 |
| Base Width (Inch) | 95.0000 |
| Coolant System | Yes |
| Features | NC Control With Touchscreen For Faster Programming And Set-Up; Stable Double-Column Design; Hydraulic Top Vises For Bundle Cutting; Miter Cutting With Programmable Cutting Angle |
| Angular Cuts at 45 Degrees (mm) | 355.60 |
| Special Item Information | Cutting Angle Settings 0° - 45°; Automatic Workpiece Feed; Robust Touch Screen Control Panel |
| Warranty | 1 Year Parts & Labor |
| UNSPSC Code | 23231100 |
| Country of Origin | China |
