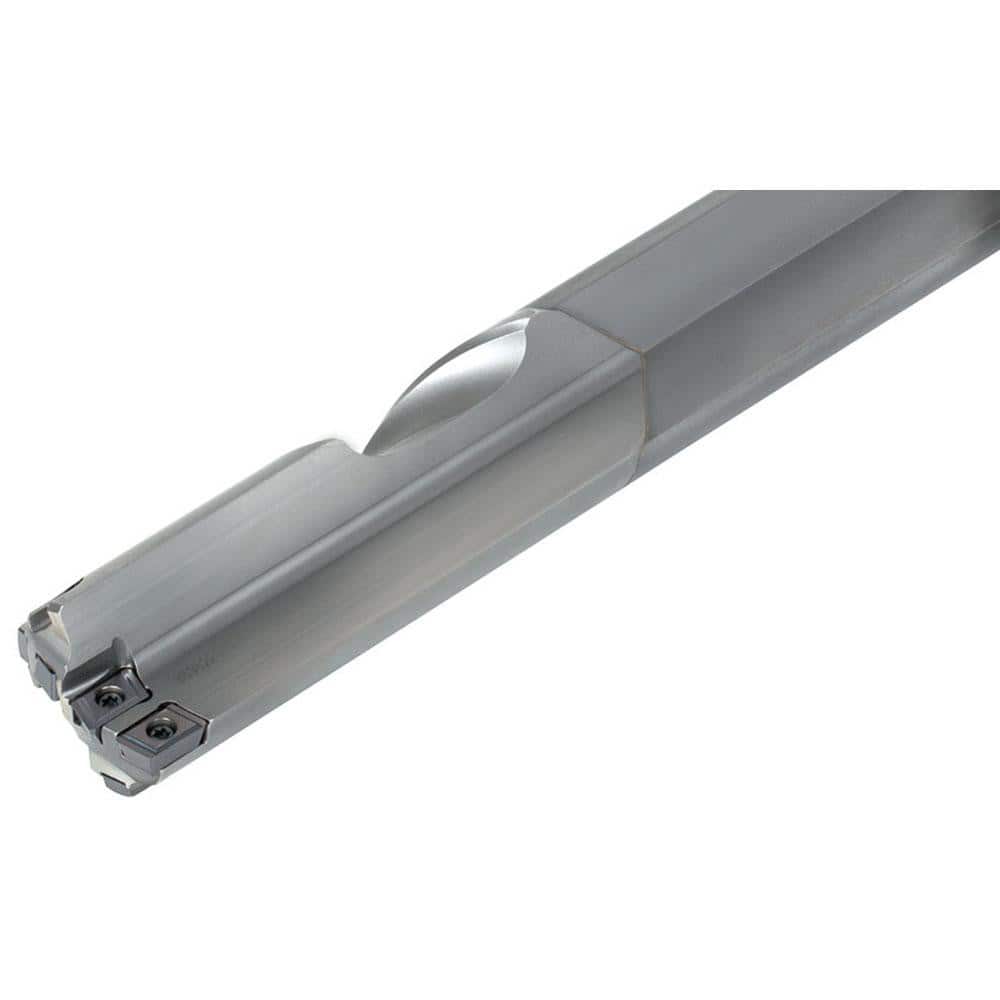

Indexable Insert Drills; Drill Style: TRLG; Maximum Drill Diameter (mm): 30.00; Maximum Drill Depth (mm): 1510.90; Shank Type: Combination; Shank Diameter (mm): 38.10; Number of Drill Inserts: 3; Cutting Direction: Right Hand; Maximum Drill Depth Range (m
Item #: 06684310
Brand: Tungaloy
Model #: 4846305
Product Specifications
| Drill Style | TRLG |
| Maximum Drill Diameter (mm) | 30.00 |
| Maximum Drill Depth (mm) | 1510.90 |
| Shank Type | Combination |
| Shank Diameter (mm) | 38.10 |
| Number of Drill Inserts | 3 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | FBM-I; FBH-P; FBM-C |
| Compatible Insert Size Code | 07; 08 |
| Drill Depth by Diameter Ratio | 50xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 1652.90 |
| Series | TRLG |
| Body Length | 1581.00 |
| Shank Length (mm) | 69.00 |
| Minimum Achievable Hole Tolerance | 0.0020 in |
| Maximum Achievable Hole Tolerance | 0.0040 in |
| Tool Application | Drilling |
| Coolant Through | Yes |
