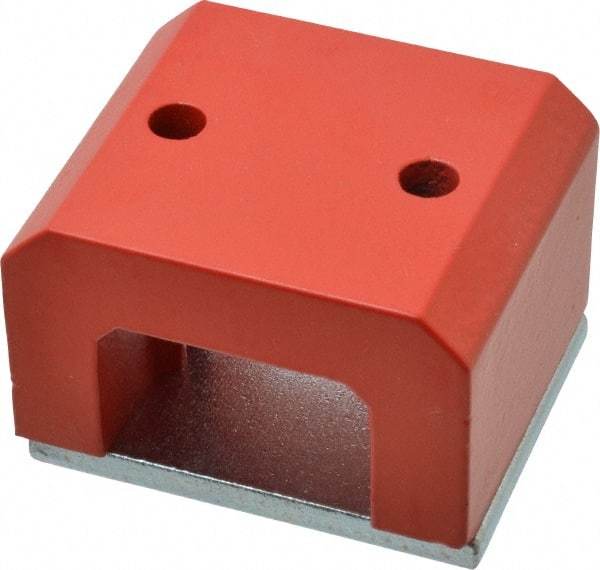

Eclipse - 2 Hole, 0.311" Hole Diam, 2-1/4" Overall Width, 2-3/4" Deep, 1-5/8" High, 80 Lb Average Pull Force, Alnico Power Magnets - 17.95mm Pole Width, 550°C Max Operating Temp, Grade 5 Alnico
Item #: 06570105
Brand: Eclipse
Model #: 815/MSC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Overall Width (mm) | 57.15 |
| Overall Width (Inch) | 2-1/4 |
| Overall Width (Decimal Inch) | 2.2500 |
| Height (Decimal Inch) | 1.6250 |
| Height (mm) | 41.28 |
| Height (Inch) | 1-5/8 |
| Depth (Decimal Inch) | 2.7656 |
| Depth (mm) | 70.25 |
| Depth (Inch) | 2-3/4 |
| Average Pull Force (Lb.) | 80.00 |
| Maximum Pull Force (Lb.) | 81.57 |
| Maximum Pull Force (kg) | 37.00 |
| Gap Width (mm) | 34.13 |
| Gap Width (Inch) | 1-11/32 |
| Number of Holes | 2 |
| Hole Diameter (Decimal Inch) | 0.3110 |
| Hole Diameter (mm) | 7.90 |
| Pole Width (mm) | 17.95 |
| Magnet Material Grade | Alnico 5 |
| Maximum Operating Temperature (C) | 550.00 |
