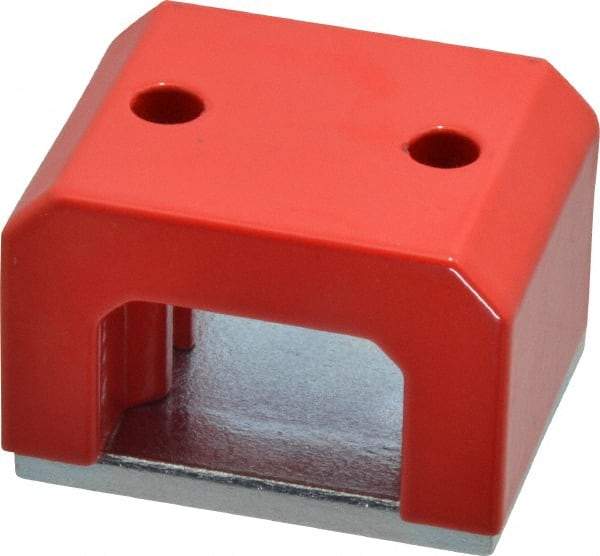

Eclipse - 2 Hole, 0.311" Hole Diam, 1-19/32" Overall Width, 2-9/32" Deep, 1-3/8" High, 51 Lb Average Pull Force, Alnico Power Magnets - 14.6mm Pole Width, 550°C Max Operating Temp, Grade 5 Alnico
Item #: 06570089
Brand: Eclipse
Model #: 814/MSC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Overall Width (mm) | 44.45 |
| Overall Width (Inch) | 1-19/32 |
| Overall Width (Decimal Inch) | 1.7500 |
| Height (Decimal Inch) | 1.3750 |
| Height (mm) | 34.93 |
| Height (Inch) | 1-3/8 |
| Depth (Decimal Inch) | 2.2500 |
| Depth (mm) | 57.15 |
| Depth (Inch) | 2-9/32 |
| Average Pull Force (Lb.) | 51.00 |
| Maximum Pull Force (Lb.) | 51.81 |
| Maximum Pull Force (kg) | 23.50 |
| Gap Width (mm) | 27.78 |
| Gap Width (Inch) | 1-3/32 |
| Number of Holes | 2 |
| Hole Diameter (Decimal Inch) | 0.3110 |
| Hole Diameter (mm) | 7.90 |
| Pole Width (mm) | 14.60 |
| Magnet Material Grade | Alnico 5 |
| Maximum Operating Temperature (C) | 550.00 |
