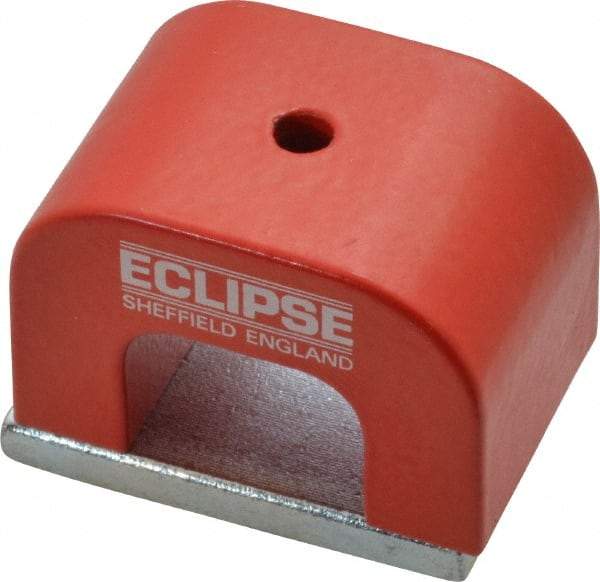

Eclipse - 1 Hole, 0.1969" Hole Diam, 1-3/16" Overall Width, 1-49/64" Deep, 1-3/16" High, 26 Lb Average Pull Force, Alnico Power Magnets - 11mm Pole Width, 550°C Max Operating Temp, Grade 5 Alnico
Item #: 06570063
Brand: Eclipse
Model #: 813
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Overall Width (mm) | 30.16 |
| Overall Width (Inch) | 1-3/16 |
| Overall Width (Decimal Inch) | 1.1875 |
| Height (Decimal Inch) | 1.1875 |
| Height (mm) | 30.16 |
| Height (Inch) | 1-3/16 |
| Depth (Decimal Inch) | 1.7656 |
| Depth (mm) | 44.85 |
| Depth (Inch) | 1-49/64 |
| Average Pull Force (Lb.) | 26.00 |
| Maximum Pull Force (Lb.) | 26.01 |
| Maximum Pull Force (kg) | 11.80 |
| Gap Width (mm) | 23.02 |
| Gap Width (Inch) | 29/32 |
| Number of Holes | 1 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Hole Diameter (mm) | 5.00 |
| Pole Width (mm) | 11.00 |
| Magnet Material Grade | Alnico 5 |
| Maximum Operating Temperature (C) | 550.00 |
