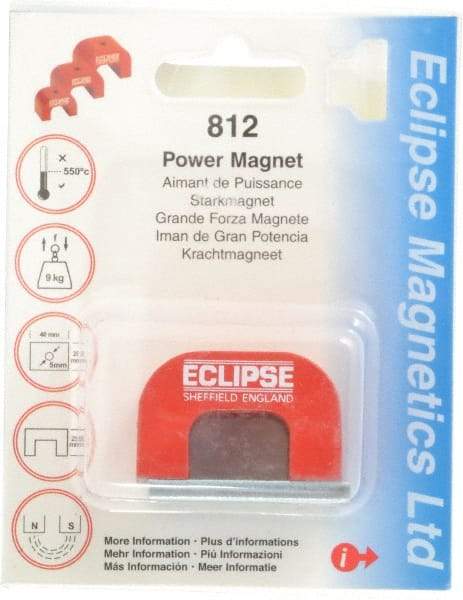

Eclipse - 1 Hole, 0.1969" Hole Diam, 63/64" Overall Width, 1-37/64" Deep, 63/64" High, 20 Lb Average Pull Force, Alnico Power Magnets - 10mm Pole Width, 550°C Max Operating Temp, Grade 5 Alnico
Item #: 06570048
Brand: Eclipse
Model #: 812
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Overall Width (mm) | 25.00 |
| Overall Width (Inch) | 63/64 |
| Overall Width (Decimal Inch) | 0.9844 |
| Height (Decimal Inch) | 0.9844 |
| Height (mm) | 25.00 |
| Height (Inch) | 63/64 |
| Depth (Decimal Inch) | 1.5781 |
| Depth (mm) | 40.08 |
| Depth (Inch) | 1-37/64 |
| Average Pull Force (Lb.) | 20.00 |
| Maximum Pull Force (Lb.) | 19.84 |
| Maximum Pull Force (kg) | 9.00 |
| Gap Width (mm) | 19.84 |
| Gap Width (Inch) | 25/32 |
| Number of Holes | 1 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Hole Diameter (mm) | 5.00 |
| Pole Width (mm) | 10.00 |
| Magnet Material Grade | Alnico 5 |
| Maximum Operating Temperature (C) | 550.00 |
