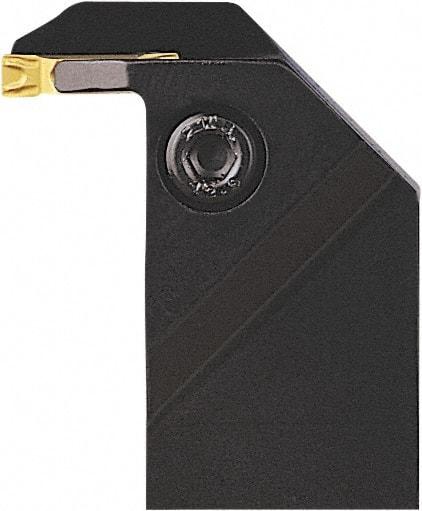

Seco - CGI, External, Left Hand, 24mm Max Depth of Cut, 8mm Min Groove Width, Indexable Grooving Tool Holder - LC.. 3008.. Insert Compatibility, 32mm Shank Height, 25mm Shank Width, 170mm OAL
Item #: 06499263
Brand: Seco
Model #: 89159
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9449 |
| Maximum Depth of Cut (mm) | 24.00 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Minimum Groove Width (mm) | 8.00 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Toolholder Style | CGI |
| Insert Compatibility | LC.. 3008.. |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Multi-Directional Turning (MDT) |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Insert Seat Size | 8 |
| Back of Bar to Cutting Edge (mm) | 50.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.9843 |
| Maximum Groove Outside Diameter (mm) | 500.00 |
| Minimum Axial Groove Inside Diameter(mm) | 200.00 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LCMF 300804-0800-FT; LCMF 300808-0800-FT; LCMF 300808-1000-FT; LCMF 300812-0800-FT; LCMF 300812-1000-FT; LCMF 3008M0-0800-MP; LCMF 3008M0-1000-MP; LCMR 300808-0800-FT; LCMR 300808-1000-FT; LCMR 300812-0800-FT; LCMR 300812-1000-FT; LCMR 3008M0-0800-MP |
