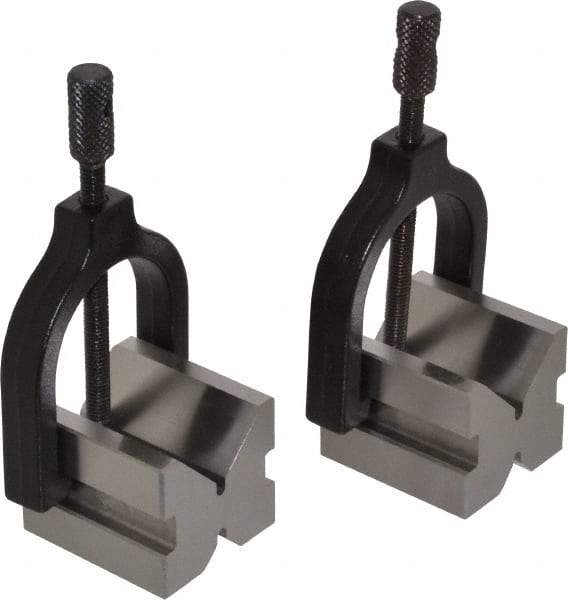

Value Collection - 14.29 to 1" Capacity, 90° Angle, Tool Steel V-Block - 1-3/4" Long x 1-19/32" Wide x 1-7/16" High, Sold as 2 Block Set
Item #: 06493019
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | 2 Block Set |
| Overall Length (mm) | 44.45 |
| Overall Length (Inch) | 1-3/4 |
| Overall Width (mm) | 40.48 |
| Overall Width (Inch) | 1-19/32 |
| Overall Height (mm) | 36.51 |
| Overall Height (Inch) | 1-7/16 |
| V Angle | 90.00 |
| Minimum Capacity of V (mm) | 14.29 |
| Minimum Capacity of V (Inch) | 9/16 |
| Maximum Capacity of V (mm) | 27.78 |
| Maximum Capacity of V (Inch) | 1 |
| Material | Tool Steel |
| Squareness Per 1 Inch (Decimal Inch) | 0.0003 |
| Squareness Per 1 Inch (micro m) | 8.00 |
| Hardness | 55-60 Rc |
| V Parallelism (Decimal Inch) | 0.0003 |
| V Parallelism (micro m) | 8.00 |
| Magnetic | No |
| Includes | (2) Clamps |
