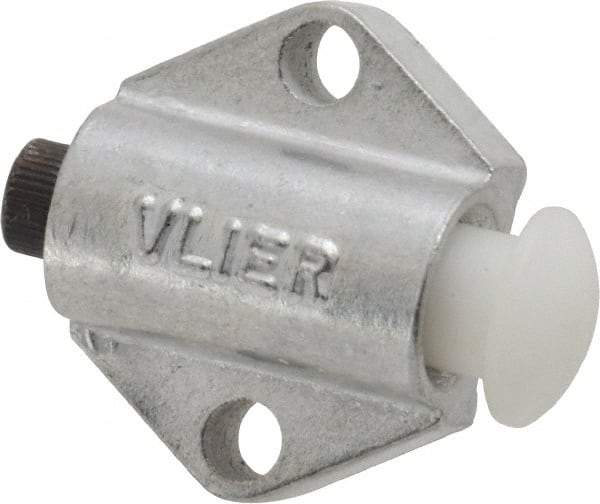

Vlier - 7/8" Base Width, 1/8" Stroke Len, 3/8" Stop Head OD, 21/32" Btw Mt Hole Ctrs, 19/32" Btw Mt Hole & Edge, Round Spring Locating Stop - 11/16" Body Len x 7/8" Body Width, 7/32" Base Thickness, 5.13 Lb Init, 10 Lb Mid, 14.9 Lb Final End Force
Item #: 06461974
Brand: Vlier
Model #: NSS88
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Stop Head Outside Diameter (Inch) | 3/8 |
| Stop Head Outside Diameter (Decimal Inch) | 0.3750 |
| Stroke Length (Decimal Inch) | 0.1250 |
| Stroke Length (Inch) | 1/8 |
| Base Width (Decimal Inch) | 0.8750 |
| Body Length (Inch) | 11/16 |
| Body Length (Decimal Inch) | 0.6880 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.6560 |
| Distance Between Mount Hole Centers (Inch) | 21/32 |
| Distance Between Mount Hole & Edge (Inch) | 19/32 |
| Distance Between Mount Hole & Edge (Decimal Inch) | 0.5930 |
| Initial End Force (Lb.) | 5.13 |
| Middle End Force (Lb.) | 10.00 |
| Final End Force (Lb.) | 14.90 |
| Body Width (Inch) | 7/8 |
| Body Width (Decimal Inch) | 0.8750 |
| Mounting Slot Length (Decimal Inch) | 0.1360 |
| Mounting Slot Width (Decimal Inch) | 0.1360 |
| Base Thickness (Inch) | 7/32 |
| Base Thickness (Decimal Inch) | 0.2188 |
| Body Material | Aluminum |
| Stop Material | Derlin |
