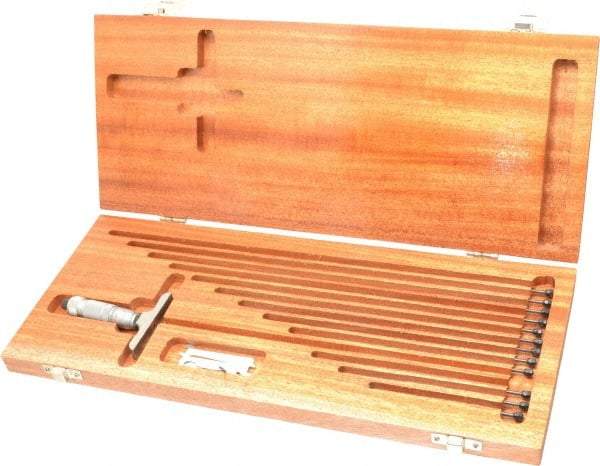

TESA Brown & Sharpe - 0 to 12" Range, 12 Rod, Satin Chrome Finish Mechanical Depth Micrometer - Friction Thimble, 2-1/2" Base Length, 0.001" Graduation, 1/8" Rod Diam
Item #: 06221642
Brand: TESA Brown & Sharpe
Model #: 599-603-128-3
Exact Tooling IR#: 04
Features and Benefits
Rotating rods are designed where the spindle rods rotate with the thimble.
Friction thimbles offer a smooth measuring operation and resist shock. They do not offer audible feedback, but are designed to be closer to the operator's hand.
| Product Specifications | |
|---|---|
| Minimum Measurement (Inch) | 0 |
| Maximum Measurement (Inch) | 12 |
| Base Length (Inch) | 2-1/2 |
| Base Length (Decimal Inch) | 2.5000 |
| Rod Type | Rotating |
| Number of Rods | 12 |
| Thimble Type | Friction |
| Graduation (Decimal Inch) | 0.00100 |
| Rod Diameter (Inch) | 1/8 |
| Accuracy (micro m) | 3.00 |
| Measuring Face Material | Hardened Steel |
| Finish/Coating | Satin Chrome |
| Includes | Fitted Wooden Case |
