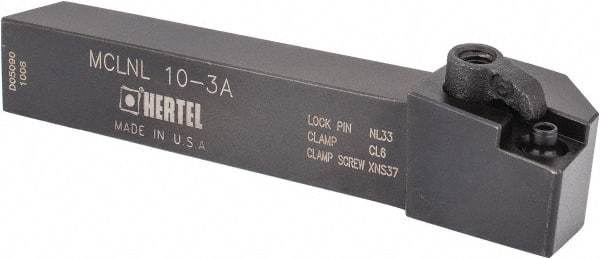

Hertel - MCLN, Left Hand Cut, 5° Lead Angle, 5/8" Shank Height x 5/8" Shank Width, Negative Rake Indexable Turning Toolholder - 4" OAL, CN..32. Insert Compatibility, Series Multi-Option
Item #: 05696679
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | MCLN |
| Rake | Negative |
| Series | Multi-Option |
| Lead Angle | 5 |
| Shank Width (Inch) | 5/8 |
| Shank Width (Decimal Inch) | 0.6250 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Insert Compatibility | CN..32. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (Inch) | 7/8 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8750 |
| Head Length (Decimal Inch) | 1.0000 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
