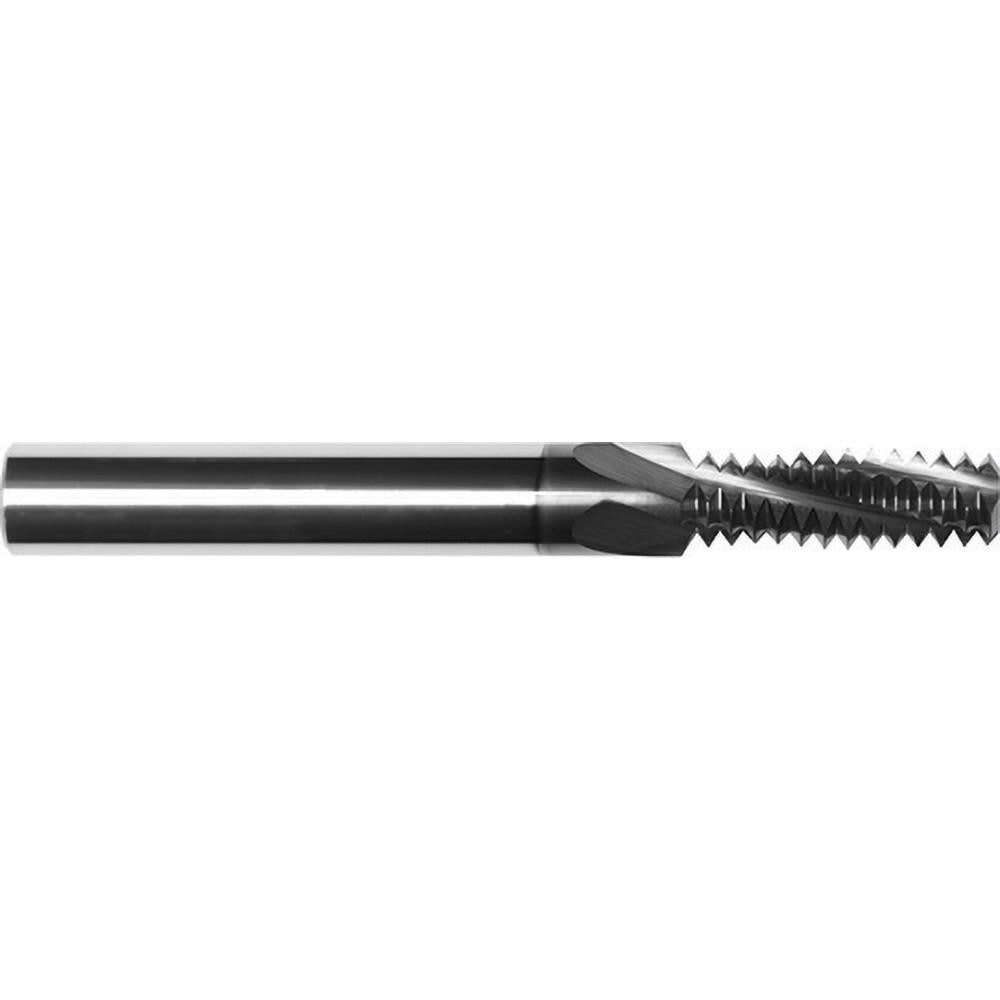

Helical Flute Thread Mill: 7/16-14, Internal & External, 4 Flute, 0.3125" Shank Dia, Solid Carbide
Item #: 97771885
Brand: Internal Tool
Model #: 89-1255
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 7/16-14 |
| Thread Type | Internal; External |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Shank Type | Straight-Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.3400 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8750 |
| Minimum Nominal Diameter (Inch) | 0.3400 |
| Shank Length (Decimal Inch) | 2.1250 |
| Shank Length (Inch) | 2-1/8 |
| Overall Length (Decimal Inch) | 3.0000 |
| Thread Standard | UNC |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 89 |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.8750 |
| Teeth Per Inch | 14 |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
