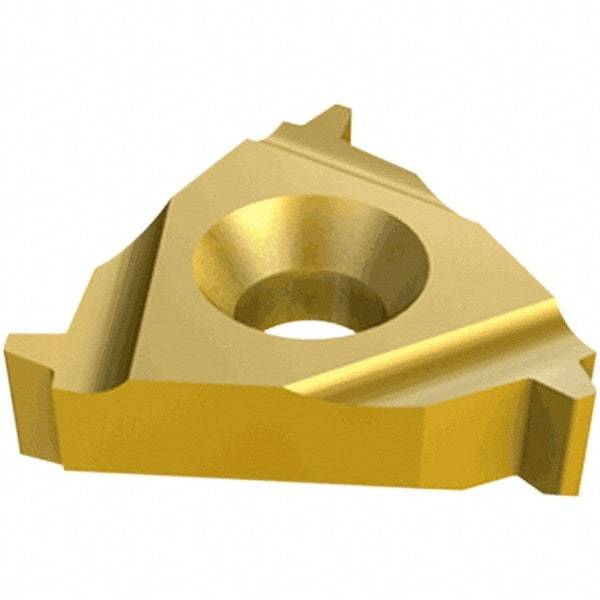

Iscar - 27IL Internal Left Hand 4.5-4 Partial Profile 60° Laydown Threading Insert - Grade IC50M, Uncoated Coated Carbide, 15.88mm Inscribed Circle
Item #: 05363361
Brand: Iscar
Model #: 5990414
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 27IL |
| Insert Hand | Left Hand |
| Thread Type | Internal |
| Thread Standard | Partial Profile 60 |
| Manufacturer's Grade | IC50M |
| Threads Per Inch | 4.5-4 |
| Pitch (mm) | 5.50-6.00 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.2510 |
| Coating | Uncoated |
| Corner Radius (mm) | 0.31 |
| Corner Radius (Decimal Inch) | 0.0122 |
