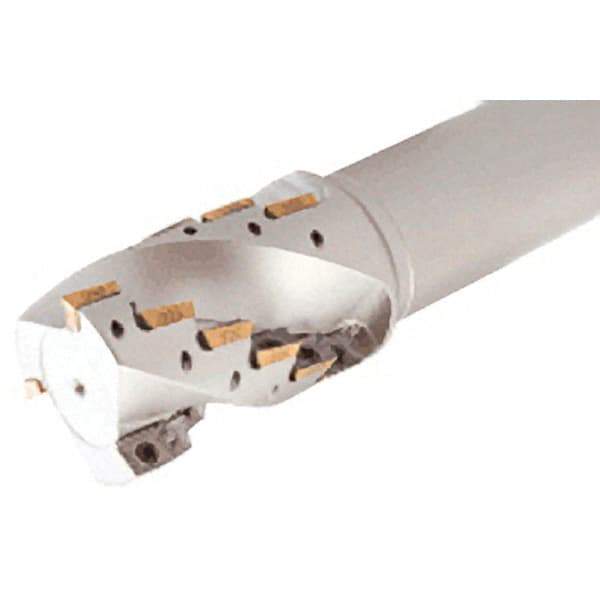

Iscar - 25mm Cut Diam, 37mm Max Depth of Cut, 25mm Shank Diam, 105mm OAL, Indexable Square Shoulder Helical End Mill - Weldon Shank, 90° Lead Angle, Series Helimill
Item #: 05352232
Brand: Iscar
Model #: 3100864
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 105.00 |
| Overall Length/Projection (Decimal Inch) | 4.1339 |
| Lead Angle | 90 |
| Series | Helimill |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 37.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.4567 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 2 |
| Head Length (mm) | 47.00 |
| Head Length (Decimal Inch) | 1.8504 |
| Weldon Flat | Yes |
