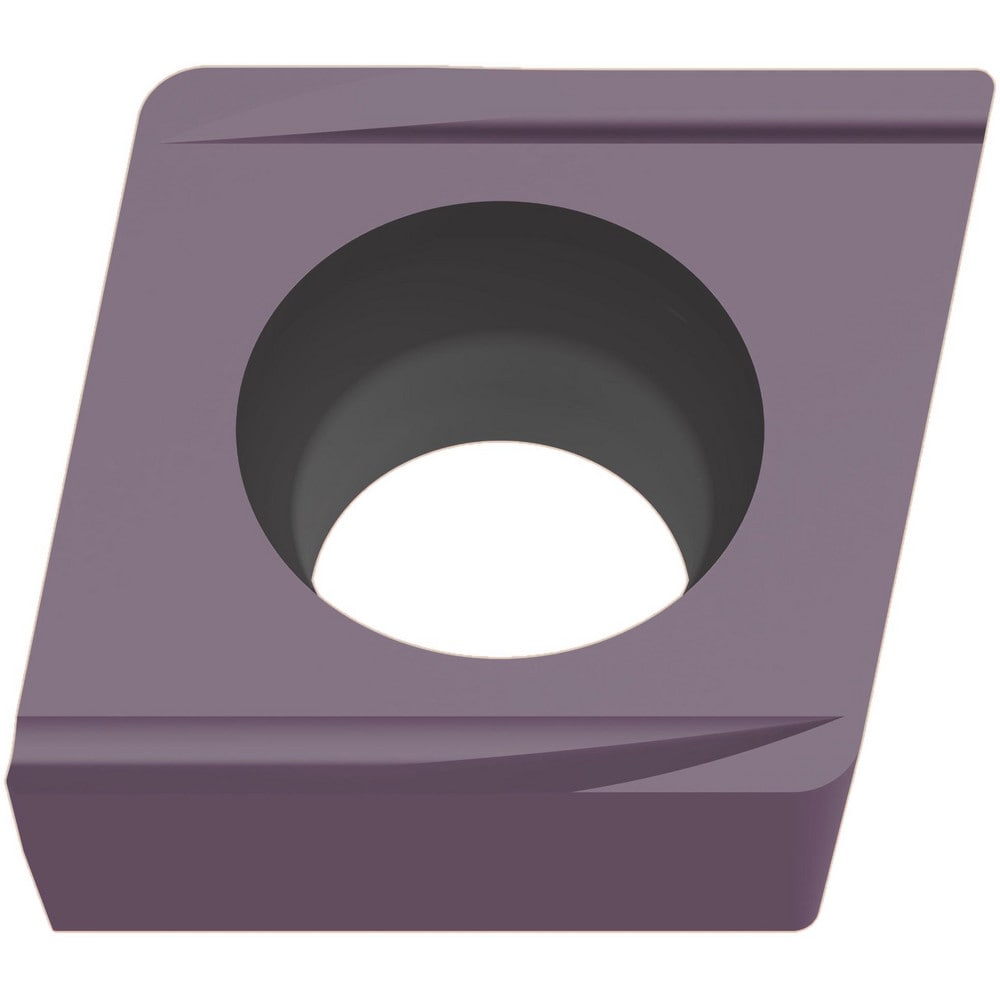

Turning Insert: CCGT21.5V3RSS VP15TF, Carbide
Item #: 88445937
Brand: Mitsubishi
Model #: 266511
Product Specifications
| ANSI Insert Code | CCGT21.5V3 |
| ISO Insert Code | CCGT0602V3 |
| Relief Angle | 7 |
| Insert Style | CCGT |
| Corner Radius (mm) | 0.03 |
| Corner Radius (Decimal Inch) | 0.0012 |
| Included Angle | 80 |
| Manufacturer Grade | VP15TF |
| Coating/Finish | PVD |
| Insert Hand | Right Hand |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Light Machining; Finishing |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Clearance Code | C |
| Tolerance Code | G |
| Primary Workpiece Material Code | P; K; M |
| Chip Breaker | SS |
| ANSI Size Code | 21.5V3 |
| ISO Size Code | 0602V3 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2 |
| Country of Origin | Japan |
