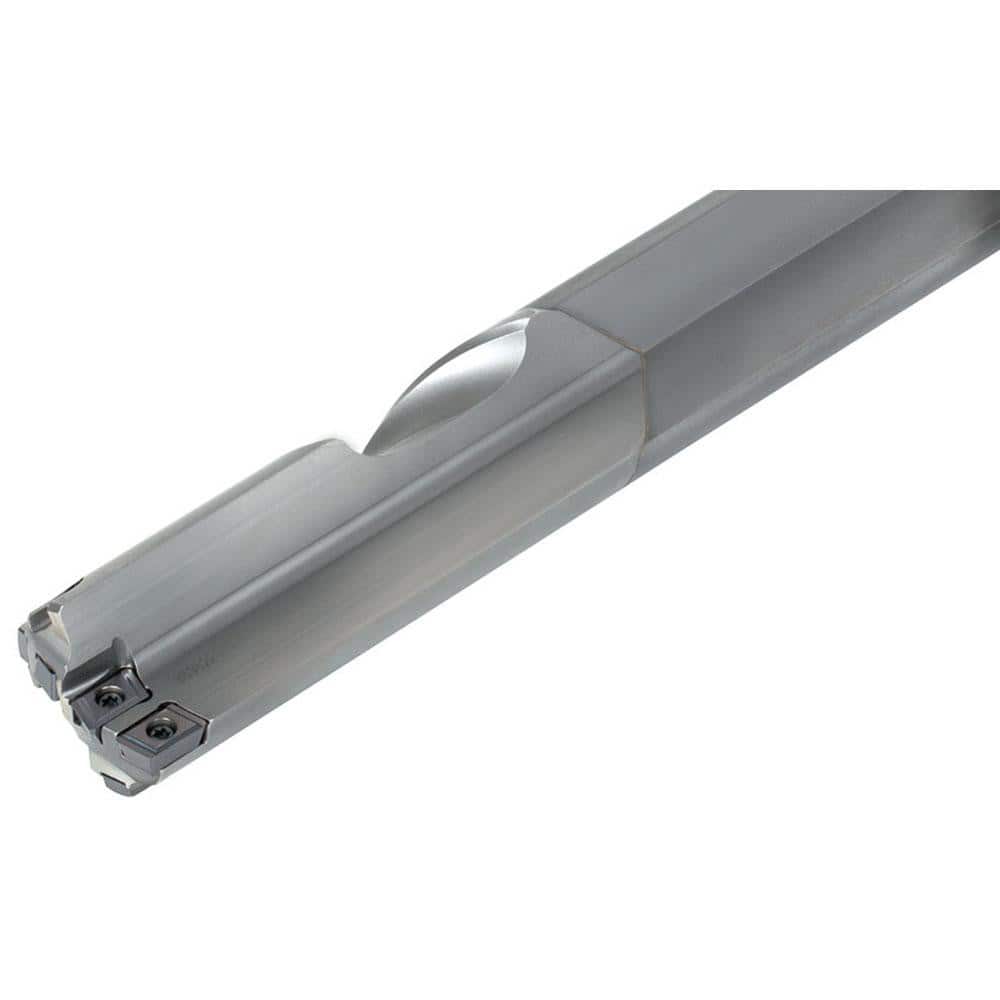

Indexable Insert Drills; Drill Style: MCTR; Maximum Drill Diameter (mm): 35.00; Maximum Drill Depth (mm): 353.10; Shank Type: Flatted; Shank Diameter (Inch): 40; Shank Diameter (mm): 40.00; Number of Drill Inserts: 3; Cutting Direction: Right Hand; Maximu
Item #: 05101118
Brand: Tungaloy
Model #: 4846290
Product Specifications
| Drill Style | MCTR |
| Maximum Drill Diameter (mm) | 35.00 |
| Maximum Drill Depth (mm) | 353.10 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 40 |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 3 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | FBM-I; FBH-P; FBM-C |
| Compatible Insert Size Code | 07; 08 |
| Drill Depth by Diameter Ratio | 10xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 497.00 |
| Series | MCTR |
| Body Length | 428.00 |
| Shank Length (mm) | 69.00 |
| Minimum Achievable Hole Tolerance | 0.0020 in |
| Maximum Achievable Hole Tolerance | 0.0040 in |
| Tool Application | Drilling |
| Coolant Through | Yes |
