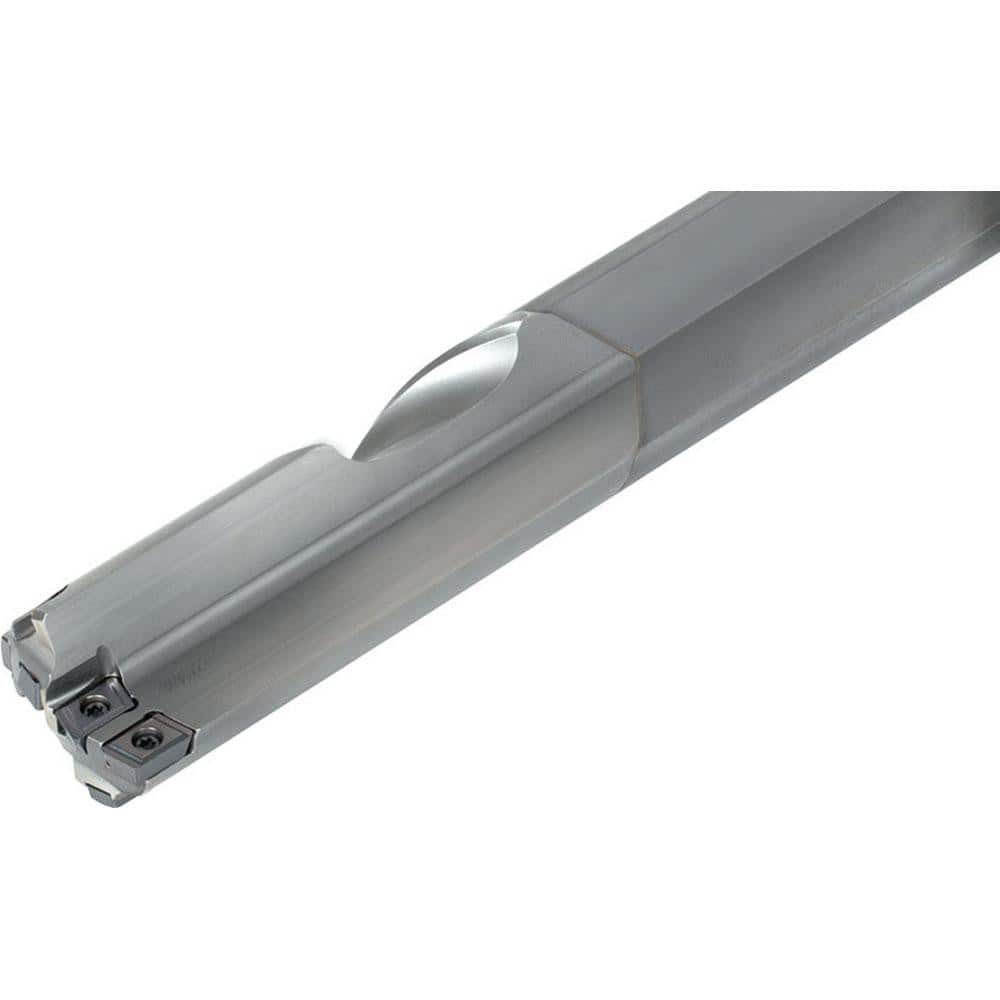

Indexable Insert Drills; Drill Style: MCTR; Maximum Drill Diameter (Inch): 1-3/8; Maximum Drill Diameter (Decimal Inch): 1.3752; Maximum Drill Depth (Decimal Inch): 34.5710; Shank Type: Flatted; Shank Diameter (Inch): 1-1/4; Shank Diameter (Decimal Inch):
Item #: 05100128
Brand: Tungaloy
Model #: 4853404
Product Specifications
| Drill Style | MCTR |
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Maximum Drill Diameter (Decimal Inch) | 1.3752 |
| Maximum Drill Depth (Decimal Inch) | 34.5710 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 3 |
| Drill Diameter Range (Decimal Inch) | 1.3000 to 1.5000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Tool Material | Steel |
| Compatible Insert Style | FBM-I; FBH-P; FBM-C |
| Compatible Insert Size Code | 07; 08 |
| Drill Depth by Diameter Ratio | 25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 40.36 |
| Series | MCTR |
| Shank Length (Decimal Inch) | 2.7170 |
| Minimum Achievable Hole Tolerance | 0.0020 in |
| Maximum Achievable Hole Tolerance | 0.0040 in |
| Tool Application | Drilling |
| Coolant Through | Yes |
