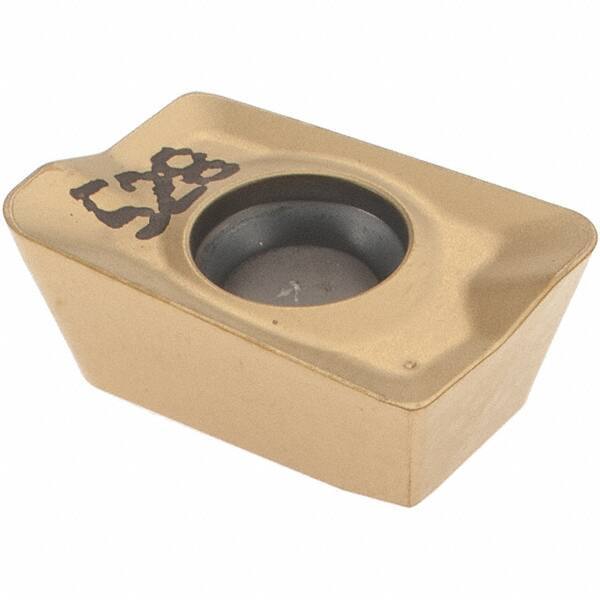

Iscar - ADKT150516 HM Grade IC528 Carbide Milling Insert - TiCN/TiN Finish, 0.2205" Thick, 1.6mm Corner Radius
Item #: 05018155
Brand: Iscar
Model #: 5690624
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ADKT |
| Insert Size | 150516 |
| Material | Carbide |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Width (Decimal Inch) | 0.3768 |
| Length (Decimal Inch) | 0.6142 |
| Thickness (Decimal Inch) | 0.2205 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 15.000 |
| Rake Angle | 20 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Chipbreaker | HM |
| Maximum Depth of Cut (mm) | 13.85 |
| Maximum Depth of Cut (Decimal Inch) | 0.5453 |
| ISO Number | ADKT 150516R-HM |
