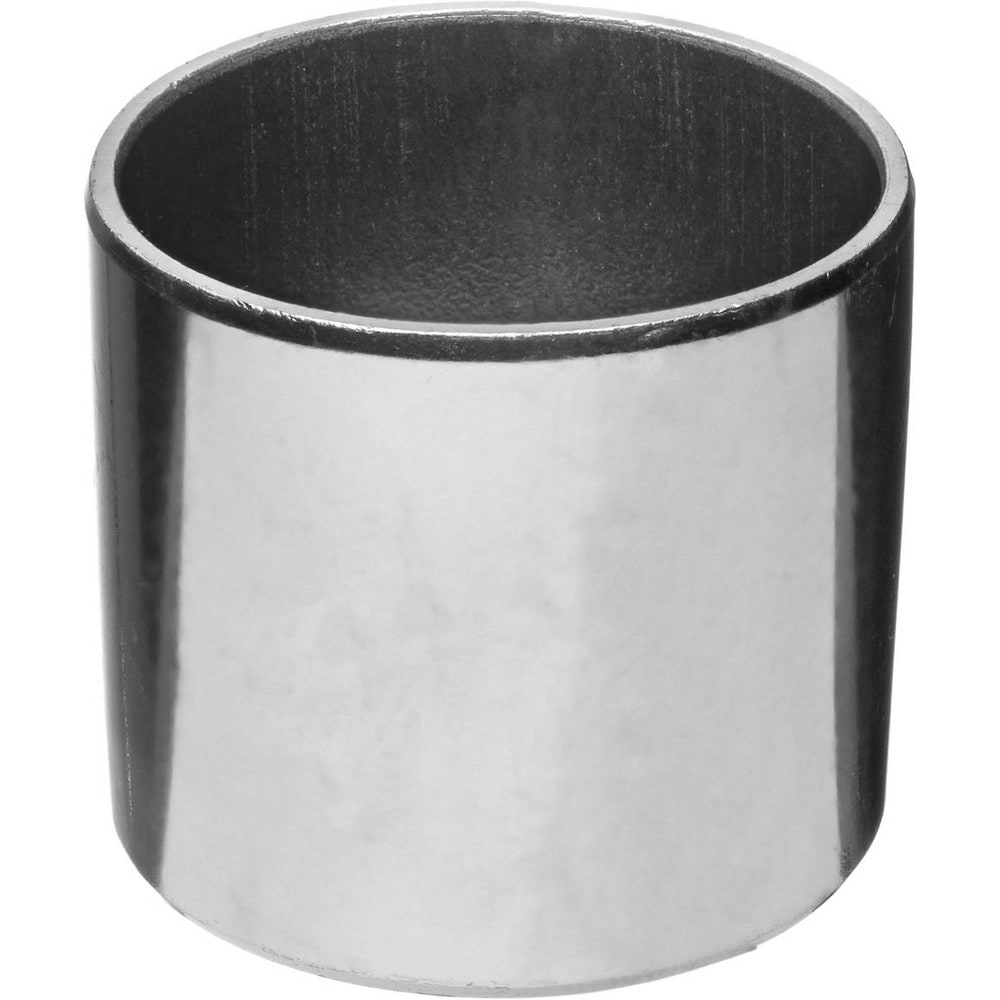

Sleeve Bearings; Bearing Type: Sleeve; Outside Diameter (Inch): 3-13/16; Outside Diameter (Decimal Inch - 4 Decimals): 3.8125; Inside Diameter (Inch): 3-5/8; Inside Diameter (Decimal Inch): 3.6250
Item #: 77001998
Brand: USA Industrials
Model #: ZUSAB-PB-990
Product Specifications
| Bearing Type | Sleeve |
| Outside Diameter (Inch) | 3-13/16 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 3.8125 |
| Inside Diameter (Inch) | 3-5/8 |
| Inside Diameter (Decimal Inch) | 3.6250 |
| Material | Steel |
| Overall Length (Inch) | 3-3/4 |
| Overall Length (Decimal Inch) | 3.7500 |
| Static Load Capacity | 2456438.38 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 3.8120 |
| Housing Bore Limits Mininum | 3.8110 |
| Inside Diameter (mm) | 92.0800 |
| Overall Length (mm) | 95.25 |
| UNSPSC Code | 31171509 |
| Country of Origin | United Kingdom |
