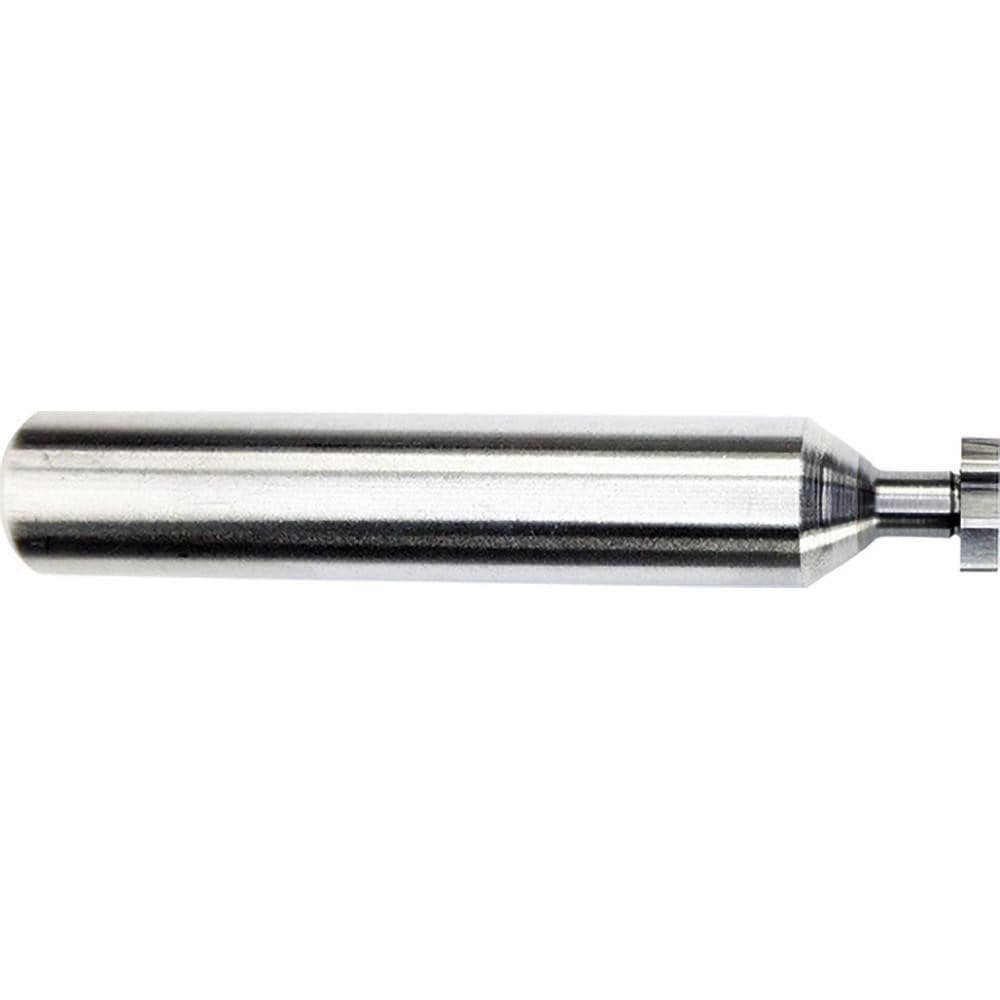

Woodruff Keyseat Cutter: 30.00 mm Cut Dia, 3.00 mm Cut Width, 12.70 mm Shank Dia, Straight Tooth
Item #: 86920071
Brand: Internal Tool
Model #: 79-1955
Product Specifications
| Connection Type | Shank |
| Cutter Material | Solid Carbide |
| Cutter Diameter (mm) | 30.00 |
| Tooth Configuration | Straight |
| Cutting Width (mm) | 3.00 |
| Weldon Flat | No |
| Neck Diameter (mm) | 7.00 |
| Neck Length (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (mm) | 12.70 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (mm) | 76.50 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutter Material Grade | Micrograin |
| Series | 79 |
| Coating/Finish | Bright/Uncoated |
| Number Of Teeth | 12 |
| UNSPSC Code | 23241631 |
| Country of Origin | UNITED STATES |
