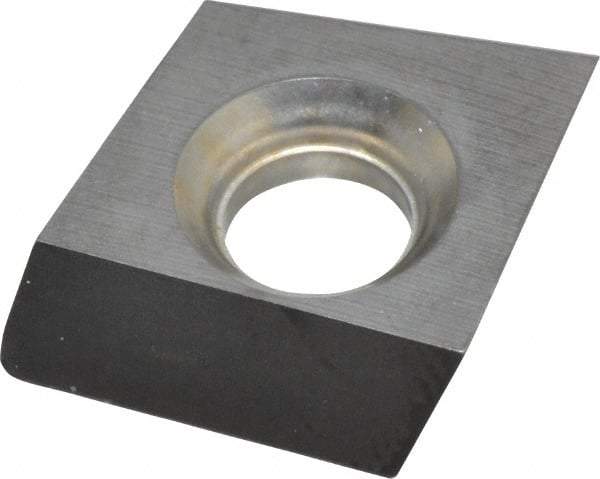

Kennametal - 4.21103611 Grade K125M Carbide Milling Insert - Uncoated, 0.158" Thick, 0.4331" Inscribed Circle
Item #: 03811064
Brand: Kennametal
Model #: 1130346
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 4.21103 |
| Insert Size | 611 |
| Material | Carbide |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | K125M |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.4134 |
| Inscribed Circle (Decimal Inch) | 0.4331 |
| Thickness (Decimal Inch) | 0.1580 |
| Hole Diameter (mm) | 4.50 |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Shape | Diamond |
| ISO Number | 4.21103R611 |
