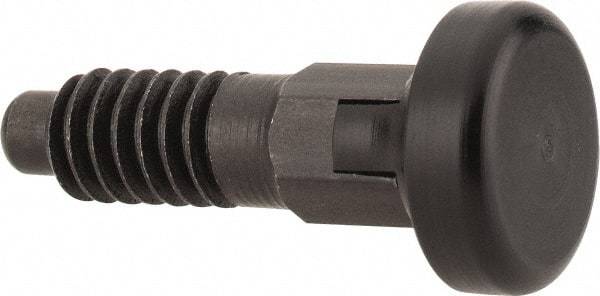

Vlier - M10x1.5, 20mm Thread Length, 0.236" Max Plunger Diam, 0.22 Lb Init to 2.02 Lb Final End Force, Locking Knob Handle Plunger - Delrin Knob, 0.98" Body Length, 0.79" Length Under Head/Shoulder, 0.196" Plunger Projection
Item #: 03680477
Brand: Vlier
Model #: SMPRTL10
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M10x1.5 |
| Thread Length (mm) | 20.00 |
| Plunger Type | Locking |
| Knob Style | Delrin |
| Body Length (mm) | 24.89 |
| Body Length (Decimal Inch) | 0.9800 |
| Length Under Head/Shoulder (mm) | 20.07 |
| Length Under Head/Shoulder (Decimal Inch) | 0.7900 |
| Plunger Projection (mm) | 4.98 |
| Plunger Projection (Decimal Inch) | 0.1960 |
| Maximum Plunger Diameter (mm) | 5.99 |
| Maximum Plunger Diameter (Decimal Inch) | 0.2360 |
| Initial End Force (N) | 1.00 |
| Initial End Force (Lb.) | 0.22 |
| Final End Force (N) | 9.00 |
| Final End Force (Lb.) | 2.02 |
| Locking Element | No |
| Plunger Length (mm) | 38.10 |
| Plunger Length (Decimal Inch) | 1.5000 |
| Head Diameter (mm) | 19.05 |
| Head Diameter (Decimal Inch) | 0.7500 |
| Head & Shoulder Height (mm) | 18.03 |
| Head & Shoulder Height (Decimal Inch) | 0.7100 |
| Hex Size (mm) | 9.91 |
| Hex Size (Decimal Inch) | 0.3900 |
| Material | Stainless Steel |
| Finish/Coating | Black Oxide |
