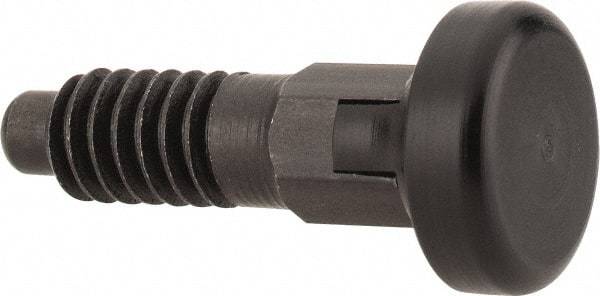

Vlier - M12x1.75, 25mm Thread Length, 0.314" Max Plunger Diam, 0.56 Lb Init to 1.8 Lb Final End Force, Locking Knob Handle Plunger - Delrin Knob, 1.2" Body Length, 0.98" Length Under Head/Shoulder, 0.236" Plunger Projection
Item #: 03680451
Brand: Vlier
Model #: MPRTL12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M12x1.75 |
| Thread Length (mm) | 25.00 |
| Plunger Type | Locking |
| Knob Style | Delrin |
| Body Length (mm) | 30.48 |
| Body Length (Decimal Inch) | 1.2000 |
| Length Under Head/Shoulder (mm) | 24.89 |
| Length Under Head/Shoulder (Decimal Inch) | 0.9800 |
| Plunger Projection (mm) | 5.99 |
| Plunger Projection (Decimal Inch) | 0.2360 |
| Maximum Plunger Diameter (mm) | 7.98 |
| Maximum Plunger Diameter (Decimal Inch) | 0.3140 |
| Initial End Force (N) | 2.50 |
| Initial End Force (Lb.) | 0.56 |
| Final End Force (N) | 8.00 |
| Final End Force (Lb.) | 1.80 |
| Locking Element | No |
| Plunger Length (mm) | 46.99 |
| Plunger Length (Decimal Inch) | 1.8500 |
| Head Diameter (mm) | 24.89 |
| Head Diameter (Decimal Inch) | 0.9800 |
| Head & Shoulder Height (mm) | 22.10 |
| Head & Shoulder Height (Decimal Inch) | 0.8700 |
| Hex Size (mm) | 11.99 |
| Hex Size (Decimal Inch) | 0.4720 |
| Material | Steel |
| Finish/Coating | Black Oxide |
