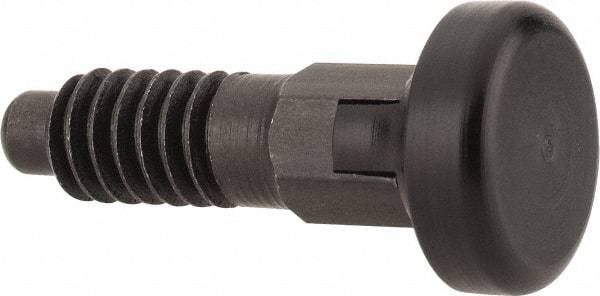

Vlier - M6x1.0, 13mm Thread Length, 0.118" Max Plunger Diam, 0.11 Lb Init to 0.34 Lb Final End Force, Locking Knob Handle Plunger - Delrin Knob, 0.63" Body Length, 1/2" Length Under Head/Shoulder, 0.118" Plunger Projection
Item #: 03680436
Brand: Vlier
Model #: MPRTL6
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M6x1.0 |
| Thread Length (mm) | 13.00 |
| Plunger Type | Locking |
| Knob Style | Delrin |
| Body Length (mm) | 16.00 |
| Body Length (Decimal Inch) | 0.6300 |
| Length Under Head/Shoulder (mm) | 12.70 |
| Length Under Head/Shoulder (Decimal Inch) | 0.5000 |
| Plunger Projection (mm) | 3.00 |
| Plunger Projection (Decimal Inch) | 0.1180 |
| Maximum Plunger Diameter (mm) | 3.00 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1180 |
| Initial End Force (N) | 0.50 |
| Initial End Force (Lb.) | 0.11 |
| Final End Force (N) | 1.50 |
| Final End Force (Lb.) | 0.34 |
| Locking Element | No |
| Plunger Length (mm) | 24.89 |
| Plunger Length (Decimal Inch) | 0.9800 |
| Head Diameter (mm) | 12.19 |
| Head Diameter (Decimal Inch) | 0.4800 |
| Head & Shoulder Height (mm) | 12.19 |
| Head & Shoulder Height (Decimal Inch) | 0.4800 |
| Hex Size (mm) | 5.99 |
| Hex Size (Decimal Inch) | 0.2360 |
| Material | Steel |
| Finish/Coating | Black Oxide |
