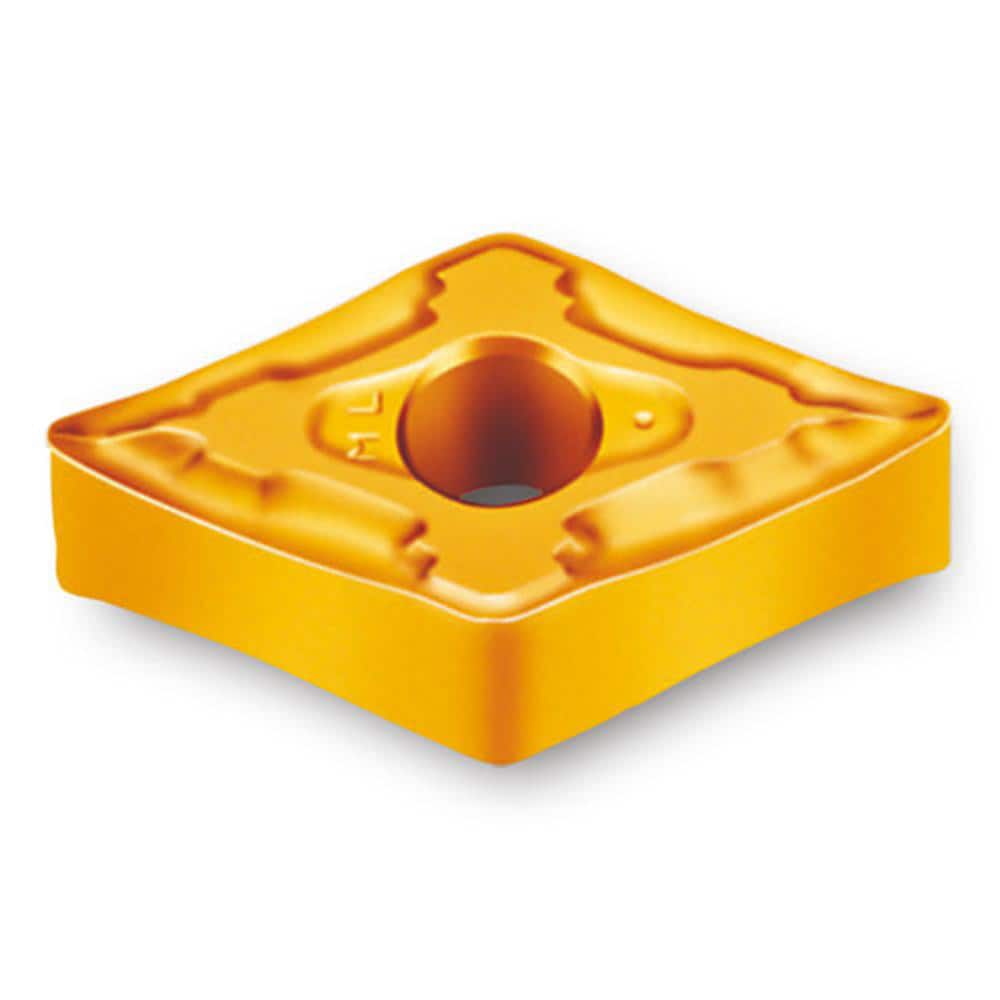

DNMG432ML TT9225 Carbide Turning Insert 1/2″ Inscribed Circle, 1/32″ Corner Radius, 55° Diamond
Item #: 03460946
Brand: Ingersoll Cutting Tools
Model #: 5521720
Product Specifications
| Insert Style | DNMG |
| Insert Shape Code | D |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9225 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | DNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6100 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | DNMG432MLTT9225 |
| Iso Code | DNMG150408ML TT9225 |
| Standards | ISO |
| Chip Breaker | ML |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Coating/Finish | TiCN; Al2O3 |
