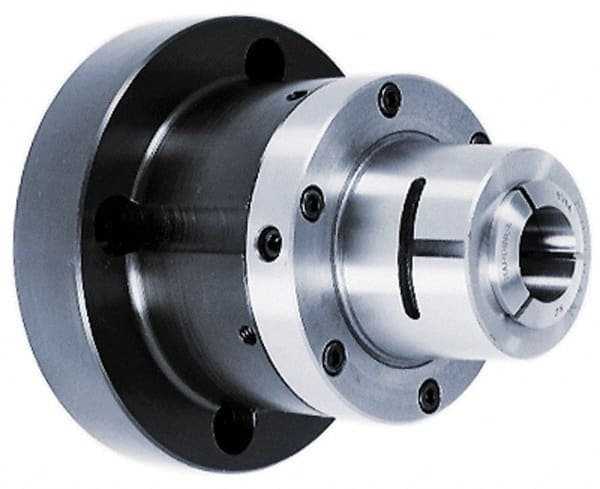

1-1/16″ Max Capacity A-6 Spindle 5C Lathe Collet Chuck Drawbar Actuator, 2.19″ Nose Diam, 5″ OAL, 0.0005″ TIR, 3.437″ Projection
Item #: 03389293
Brand: Dunham Tool
Model #: DTC-5C-THD-A6
Product Specifications
| Collet System | 5C |
| Spindle Size | A-6 |
| Actuator Type | Drawbar |
| Maximum Collet Capacity (Inch) | 1-1/16 |
| Projection (Decimal) | 3.4370 |
| Overall Length (Decimal) | 5.0000; 5 in |
| Through Coolant | Nonthrough Coolant |
| Nose Diameter (Decimal) | 2.1900 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0005 |
