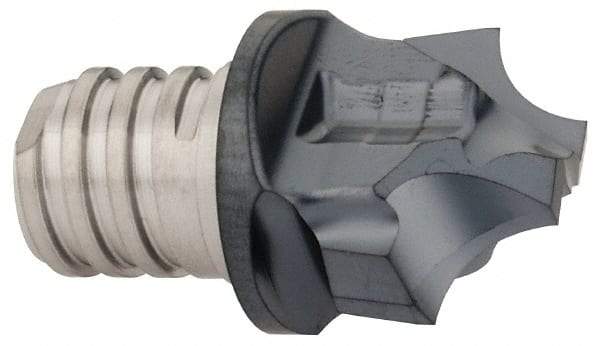

Iscar - MM HR Grade IC908 Carbide Concave Radius Milling Tip Insert - TiAlN Finish, 2 Flutes, 8mm Cutting Diam, 7mm Depth of Cut, 17.4mm Extension, 0.236" Cnr Rad
Item #: 03162310
Brand: Iscar
Model #: 5604567
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM HR |
| Milling Tip Type | Concave Radius |
| Material | Carbide |
| Cutting Diameter (mm) | 8.00 |
| Cutting Diameter (Decimal Inch) | 0.3150 |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 7.00 |
| Depth of Cut (Decimal Inch) | 0.2760 |
| Number of Flutes | 2 |
| Coating | TiAlN |
| Milling Tip Full Description | Concave Radius |
| Corner Radius (Decimal Inch) | 0.2360 |
| Coating Process | PVD |
| Extension From Holder (mm) | 17.40 |
| Extension From Holder (Decimal Inch) | 0.6850 |
| Thread Size | T12 |
| Manufacturers Catalog Number | MM HR6.0/236-8.0-2T12 |
