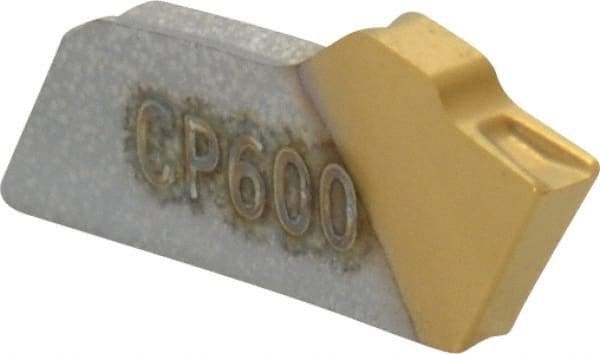

Seco - 150.101.4 16 CP600 Grade, 0.055" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.006" Cnr Rad, TiAlN/TiN Coated, Single End
Item #: 03044005
Brand: Seco
Model #: 32960
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 150.10 |
| Insert Size | 1.4 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (Decimal Inch) | 0.0550 |
| Material Grade | C5 |
| Manufacturer's Grade | CP600 |
| Coating | TiAlN/TiN |
| Series | 150.10 |
| Chipbreaker | 16 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.3540 |
| Corner Radius (Decimal Inch) | 0.0060 |
| Insert Holding Method | Clamp |
| Width Tolerance | ±0.002 |
